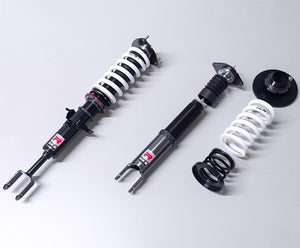

HKS Z33 350Z Hipermax R Coilovers
HKS Z33 350Z Hipermax R Coilovers
Experience the pinnacle of suspension technology with the HKS Z33 350Z Hipermax R Coilovers. Born from the latest suspension theories and refined through relentless testing, these coilovers are engineered to deliver unparalleled performance and handling for your Nissan 350Z (Z33).
Key Features:
- Incorporates the latest suspension theories and HKS expertise
- Utilizes knowledge from the HIPERMAX S for exceptional evolution
- Equipped with new components and HKS know-how
- Transforms ride quality beyond conventional dampers
The HKS Z33 350Z Hipermax R Coilovers represent the epitome of suspension excellence. These coilovers are the result of meticulous engineering, incorporating the latest suspension theories and harnessing the wealth of knowledge cultivated by HKS over the years. The goal? To elevate your Nissan 350Z's ride quality and handling to extraordinary levels, surpassing what conventional dampers can achieve.
At HKS, we leave no detail unchecked. Rigorous testing at iconic tracks like Fuji Speedway has shaped the evolution of the Hipermax R series. Comprehensive evaluations, including the impact of bonded bracket bushings on the front and rear stabilizers, have been conducted. When adjusting ride height from stock conditions, the stabilizer's ability to absorb bush reaction forces is crucial. We've tested various stabilizer settings to ensure optimal performance, giving you the flexibility to fine-tune your suspension setup.
For our testing, we used the "S Special Package" model and even adopted a strut tower bar from the "NR-A" model for additional evaluation. Fuji Speedway provided the perfect backdrop for making adjustments to your preference, with five notches available for both front and rear tightening sides.
Front and rear retainers have been included to minimize rate changes during spring compression, ensuring a smoother and more controlled ride. However, please note that while our testing was conducted at a specific vehicle height, interference with the inner fender may occur depending on factors such as tire size, model, or suspension alignment. Be sure to consider these factors during installation.
Elevate your Nissan 350Z's suspension to a new level of performance with the HKS Z33 350Z Hipermax R Coilovers. Order now and experience the evolution of HKS engineering!
Application
| Engine | VQ35HR |
|---|---|
| Model Year | 07/02 - 08/11 |
| Remarks |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Spherical bearing | Spherical bearing |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | 〇 |
| Helper spring (Spring rate N/mm) |
〇 (41.4) | 〇 (19.8) |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 671 | 663 | 683 ～ 648 | 683 ～ 648 |
| Against stock | -13 | -21 | -1 ～ -36 | -1 ～ -36 | |
| REAR | Ride height *1 | 684 | 676 | 700 ～ 651 | 700 ～ 651 |
| Against stock | -16 | -24 | 0 ～ -49 | 0 ～ -49 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 137 ( 14.0 ) | 157 ( 16.0 ) |
| Free height (mm) | 200 | 170 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 1442 / 594 | 726 / 407 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 42 / 45 | 70 / 46 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
493 | 488 | 495 | 483 | 350 | 343 | 364 | 322 |
| Spring Set length(mm) |
235 | ← | 229 | 240 | - | - | - | - |
| Length to ride hight adjuster (mm) |
30 | 25 | 38 | 15 | 37 | 32 | 47 | 16 |
| Lever ratio | 1.54 | 1.59(spg) , 1.18(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 838 (780) | 685 (670) | |
| Tire size (Air pressure) kPa | 255 / 40 - 19 ( 200 ) | 275 / 35 - 19 ( 200 ) | |
| Wheel size | 9 JJ × 19 inset 25 | 10 JJ × 19 inset 35 | |
| Alignment (Toe/Camber) |
Test data | out 3 mm / -1°21' | in 1 mm / -2°18' |
| Standard value | in 1 ± 1 mm / -0°40' ± 0°45' | in 1.9 ± 0.8 mm / -1°35' ± 0°30' | |
* Test data at HKS.
Parts List * It may be changed without prior notice.
