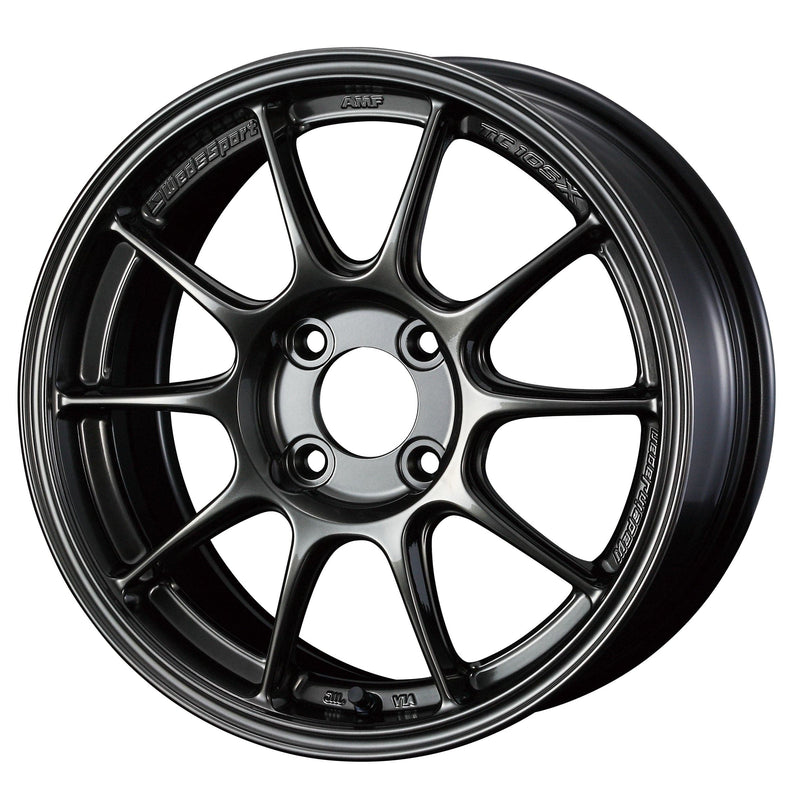

Built in the world of SuperGT Racing, the WedsSport TC-105X presents an unbeatable combination of high strength/rigidity, race-winning technology, and unbelievably low weight at a price that you won't be able to believe. Since 1993, the TC series has long stood for the ultimate in performance in the WedsSport line, with the same core characteristics being shared for close to three decades: Low weight, excellent price, and high/strength rigidity. These key values have allowed the TC line to be incredibly popular for the racing crowd. With the TC-105X, a slew of high-end racing features cements the wheel's race-bred heritage. The EJ-TI paint is just 12nm thick compared to the industry standard of 50nm; this paint must be applied using vacuum disposition. The lack of paint thickness allows for significant weight savings while the painting method allows for uniformity of the paint for a beautiful, iridescent finish. Unnecessary material has been removed in areas where extra material is not structurally important, while material has been added to key points, such as the outer flanges. A new barrel design offers greater brake rotor clearance compared to its predecessor, and the rear mounting surface has been enlarged for increased rigidity between the hubs. This wheel is manufactured in Japan and exceeds JWL/VIA testing standards by 20%.

PLEASE NOTE

• *Price is for individually
• *Pictures and colors may vary in the actual product

• *ALL SALES ARE FINAL. NO EXCHANGE, NO RETURN, NO REFUNDS ARE ALLOWED ON WEDS PRODUCTS

APPLICATION

• MOST 4x100

FEATURES

• Ball-Milling Side Cut: Increases spoke rigidity and strength while reducing weight.
• N-Frame V.2: Reinforces spoke window and increases strength and rigidity.
• Increased Hub Mass: Increases overall load capacity, rigidity, and strength for better steering response.
• New Barrel Profile: Allows installation of the larger brake system. It also improves overall strength and high-speed stability.
• VDA Painting Process: Vaccum Disposition Aluminum paint (Industry first) - Reduces heat build-up, much smoother paint property than standard paint resulting in less brake dust buildup and creating an iridescent color under different lighting angles.
• Thicker Rim Flange - TC105X has a thicker rim flange which increases the durability and strength without increasing the overall weight of the wheel.
• Bead Seat Knurling: The Knurling on the TC105X is more pronounced than before. This helps keep the tires from spinning on the rim which causes off-balance of the rim and tire.
• Multiple Face Type - Depending on size and specs, TC105X have different face type to accommodate various brake systems.

SPECIFICATION

• COLOR: EJ-TI
• DIAMETER: 17
• WIDTH: 7.5
• WHEEL OFFSET: +38
• PCD: 4X100
