Rays implemented a unique 10-spoke design on the ZE40 with several key features: lipped spokes for light but strong support, cliff center for weight off the center bore, and knurled barrels for tire grip. The wheel also comes in 3 standard finishes: Matte Blue Gunmetal (GB), Diamond Dark Gunmetal (MM), and Rays iconic Bronze (BR).

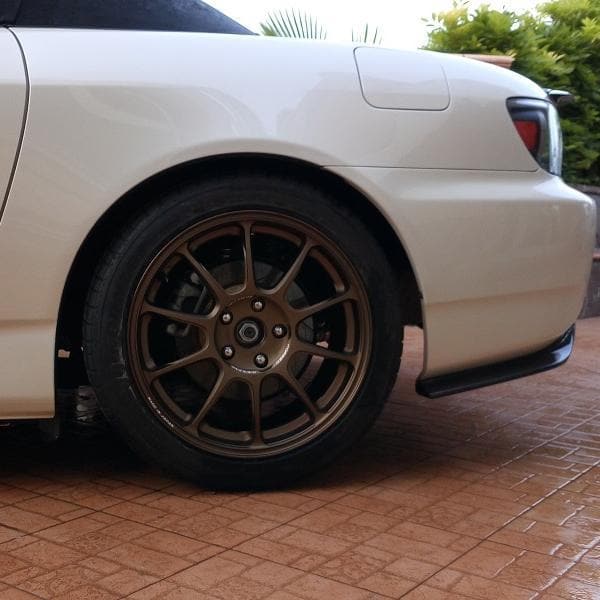

This particular set is S2000 specification for a no roll no headache fitment.
- 17x7.5 +48 5x114.3 Face-1 - 15.05 lbs

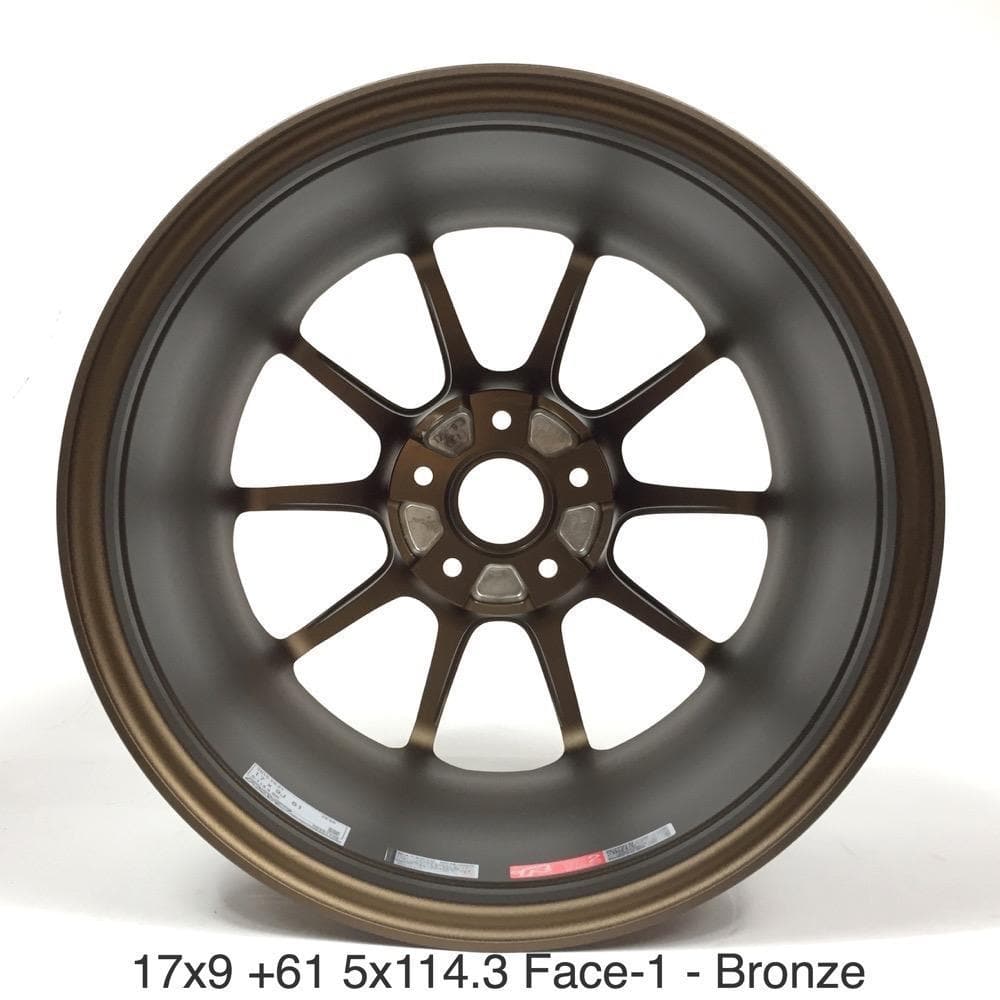

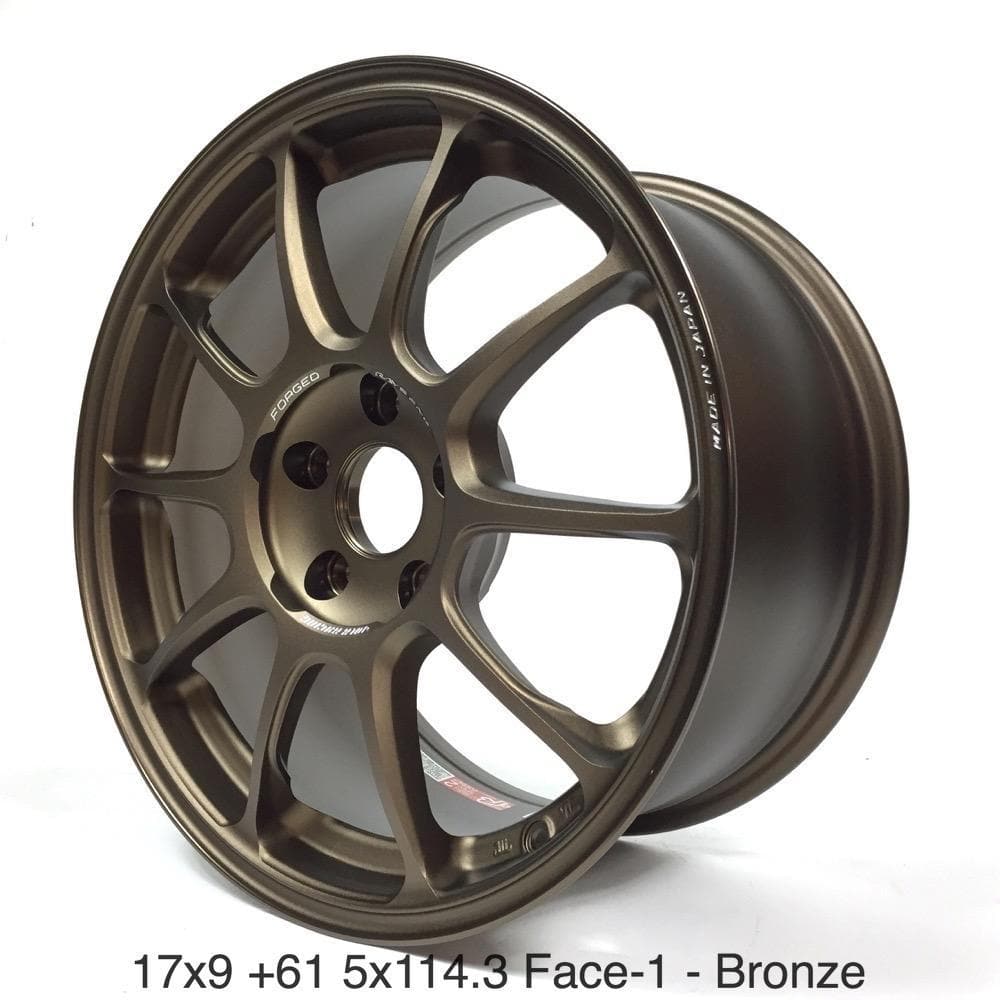

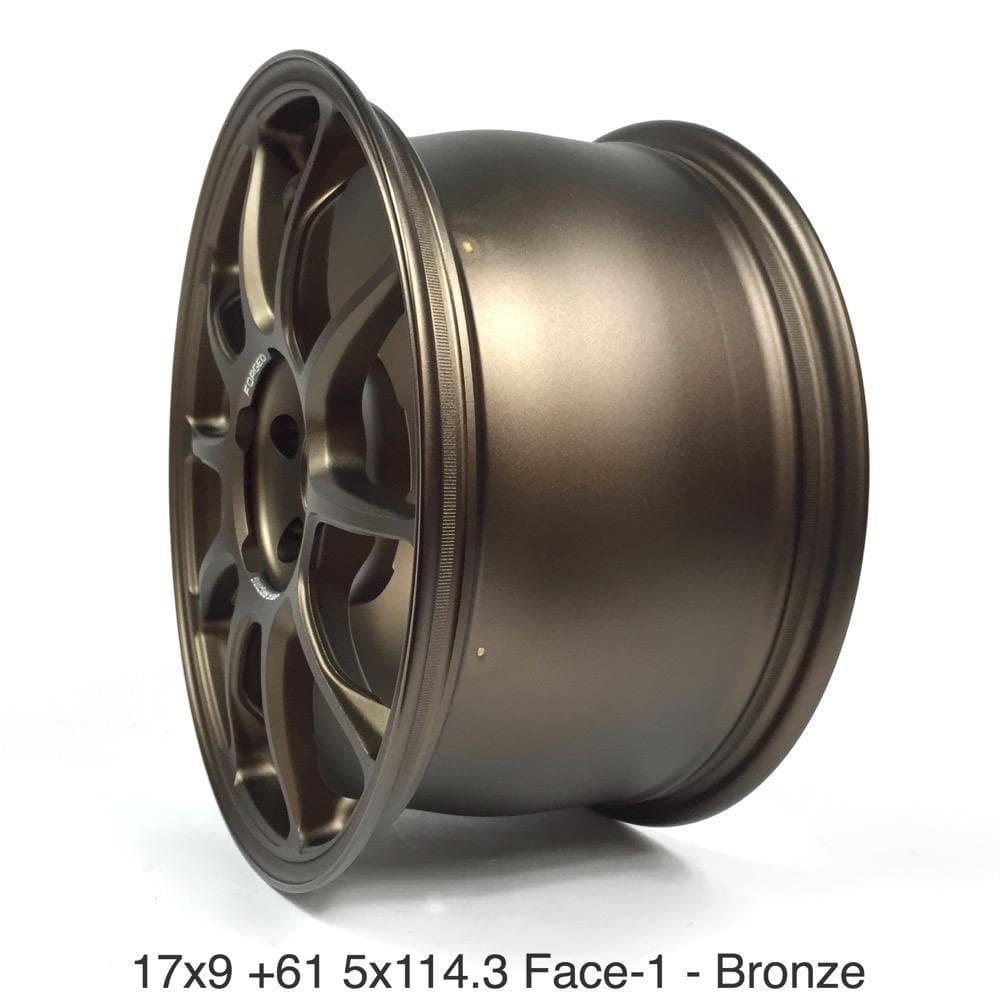

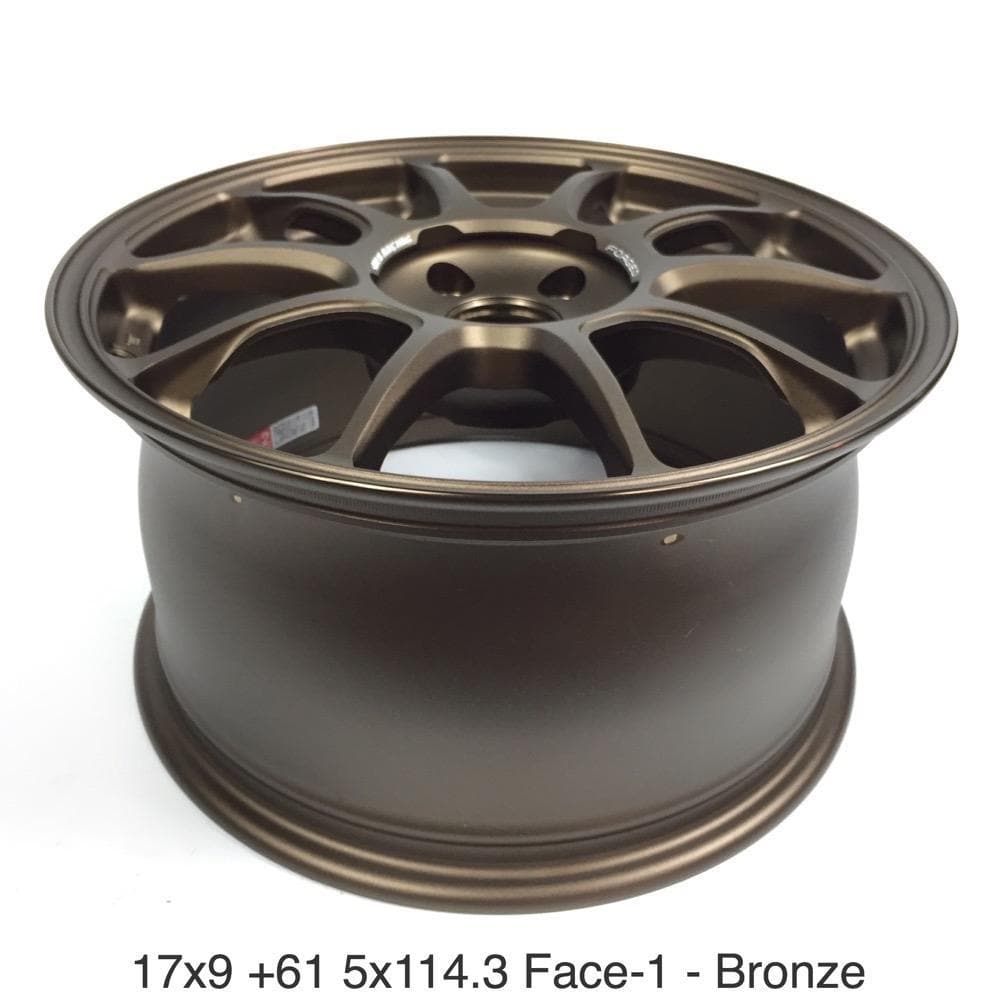

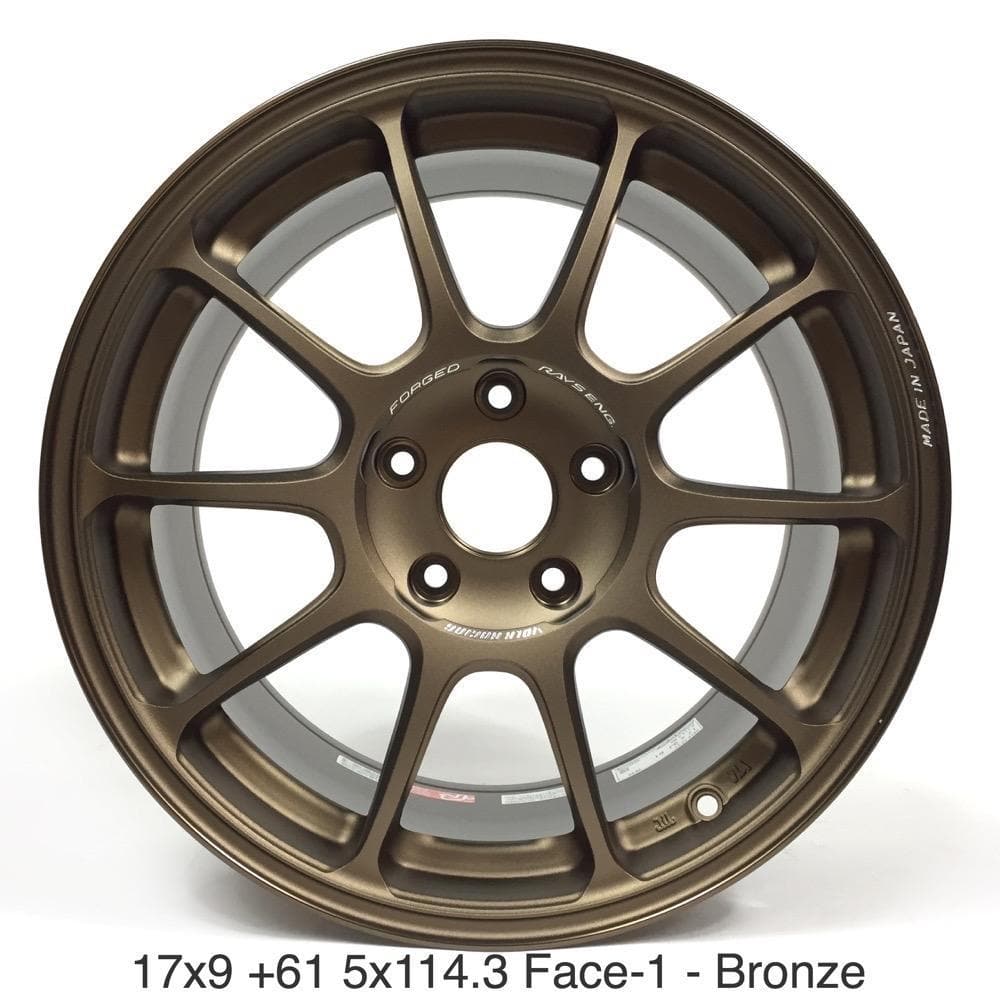

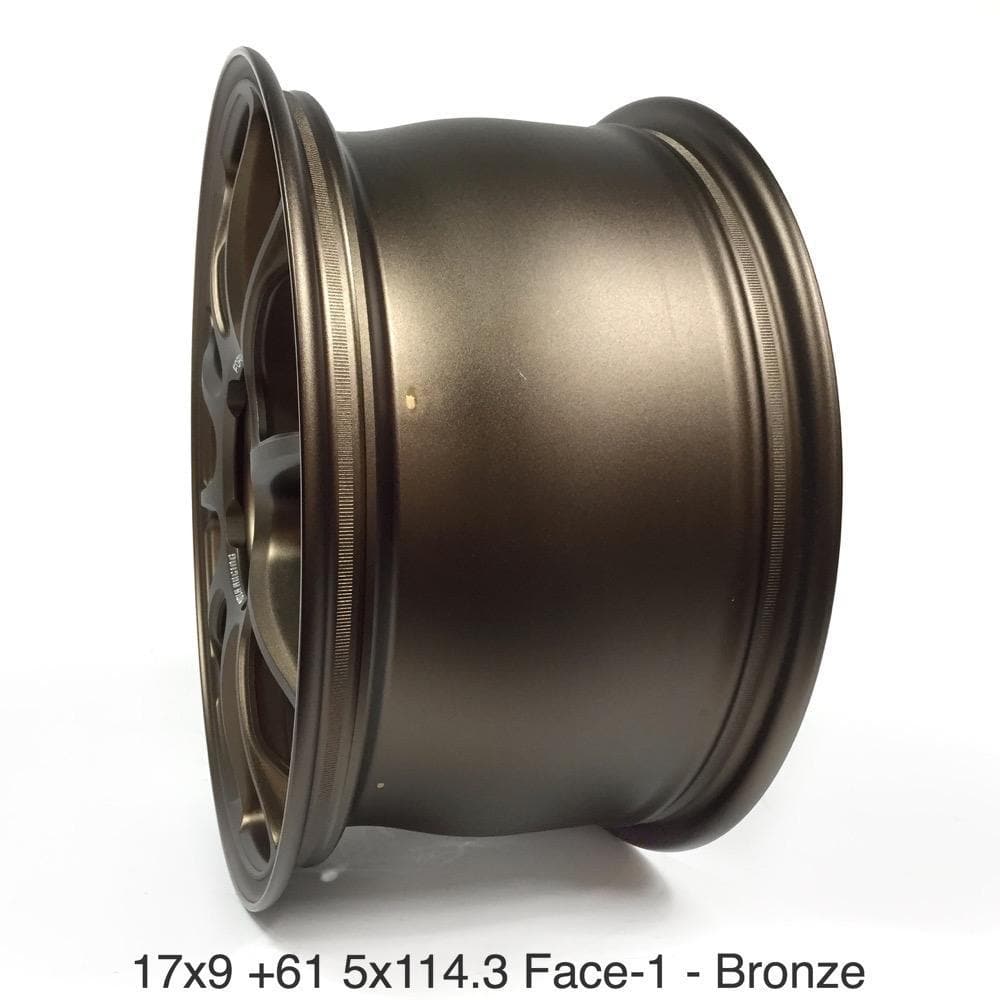

- 17x9.0 +61 5x114.3 Face-1 - 15.70 lbs
Forged one-piece wheel meeting JWL + R Spec 2 standards
Thin lipped spokes for weight saving
Cliff center hub for weight removal from hub
Knurled barrels for tire grip

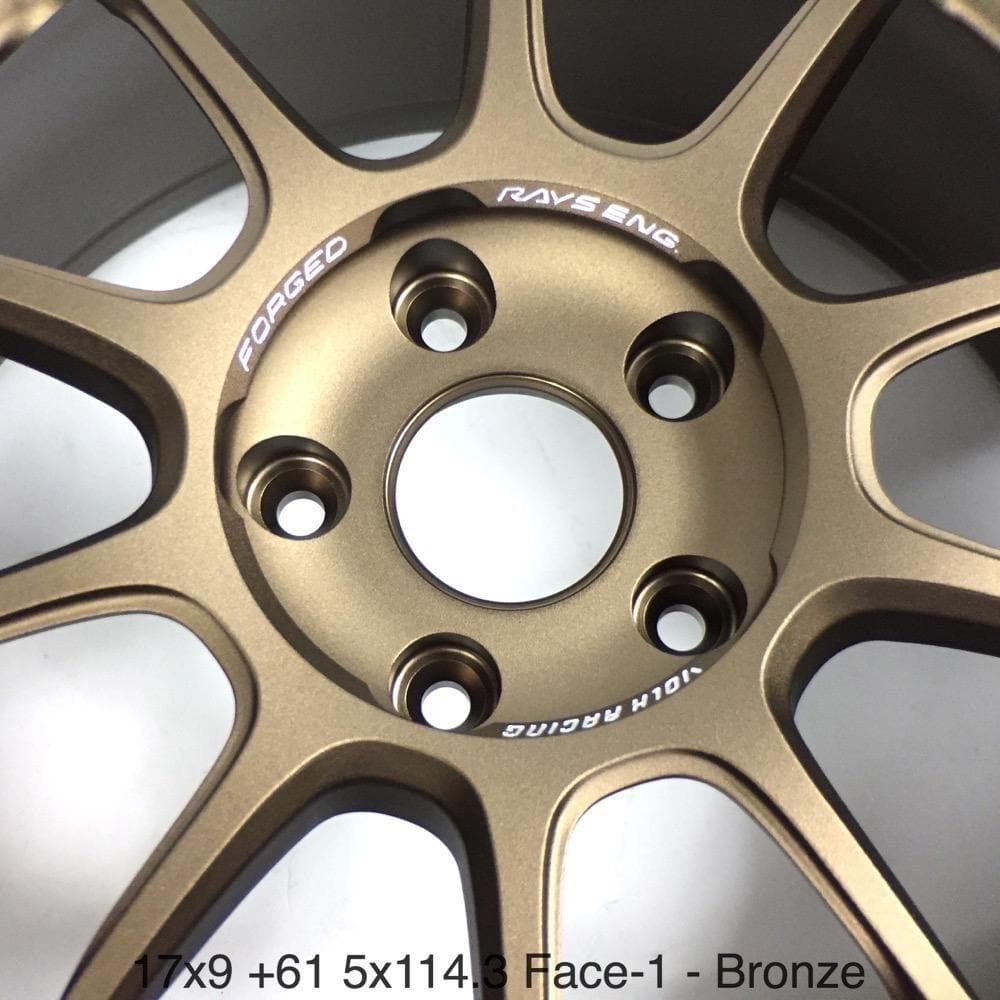

Machined logos in the center for proof of authenticity
High speed air valve included [Black for (BR) and (GB)]

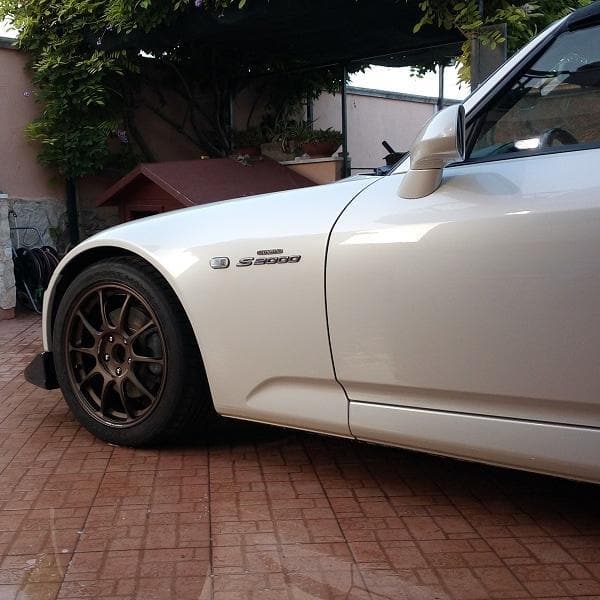

Fitment for S2000
Optional center caps are available

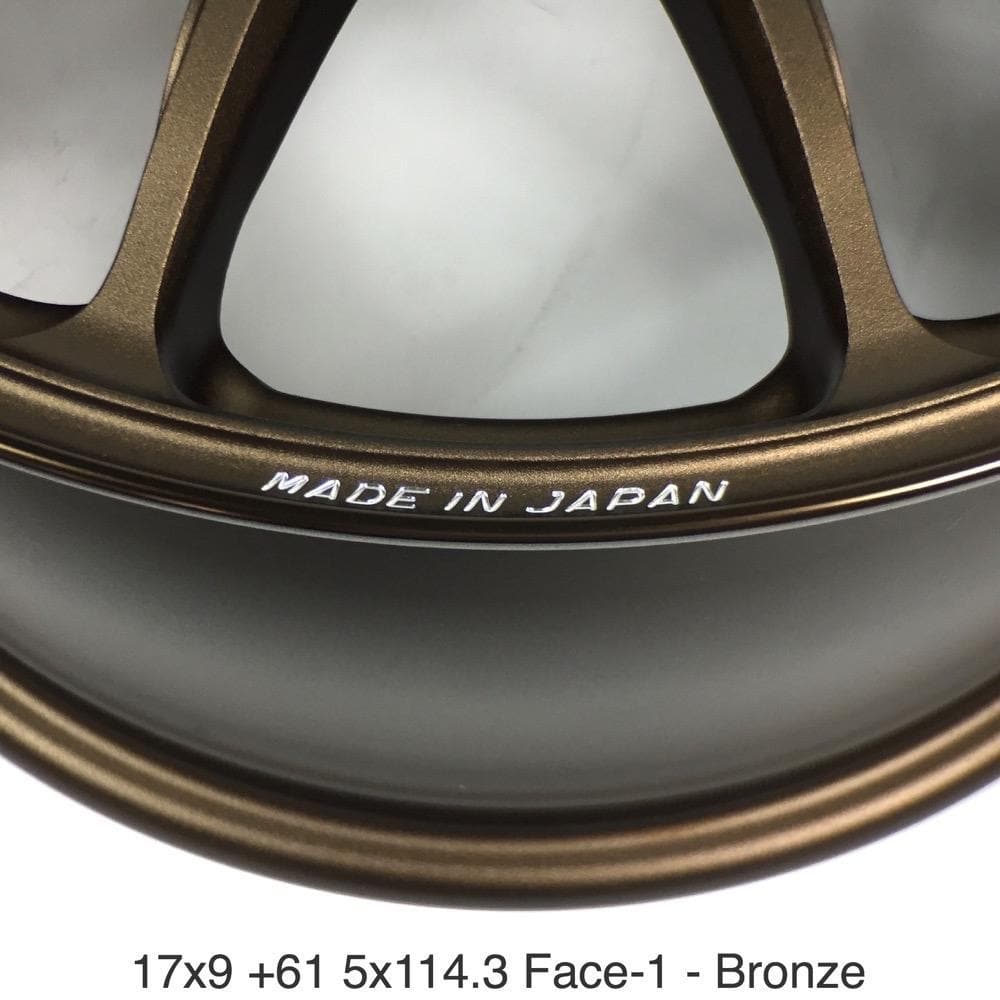

Made by Rays Co., Ltd. in Japan
RAYS Original Forging Technology (RM8000)
Uses raw 6061 aircraft grade aluminum
The first process uses 5000 kg/cm^2 pressure to slow forge the disk
The second process uses 3500 kg/cm^2 to complete the slow forge of the disk and lips
Finally, a high speed spin process extrudes the wheel barrel shape
This process takes raw aluminum & forges it into wheel shape
This process ensures uniform metal densities and properties throughout the wheel
The aluminum is flowed and forged to the shape of the wheel and not simply cut out from a forged aluminum block
