Radium 2016+ Honda Civic (excl. FL5) Fuel Hanger - for Walbro F90000267/274/285 Fuel Pumps (20-1082)

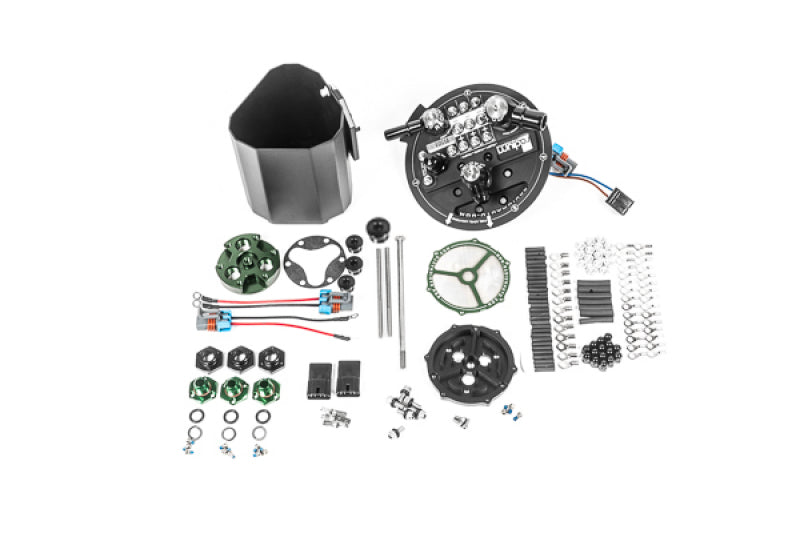

This Radium Engineering fuel hanger is designed to work with one, two, or three aftermarket fuel pumps. It retains the OEM fuel level sensor, as well as the factory vent and ORVR emission ports for proper function. The kit includes all the components needed to run up to three pumps. Depending on your specific setup, some parts may not be used. A versatile and reliable solution for high-performance fuel systems.
FITTINGS
The merged fuel pump outlet is tapped for 10AN ORB (7/8"-14) female threads on the top plate. However, a low profile 8AN male fitting (shown below left) is provided to connect to an aftermarket fuel line (not included). The fuel return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. A 6AN male adapter (shown below right) is provided to connect to an aftermarket fuel line (not included). All fittings are machined low enough to clear the surrounding area. As shown, some vehicles (outside of the North America) do not have vent or ORVR ports. Note how the 2 ports on the OEM unit are sealed shut. For these applications, a 10AN ORB plug (shown red) and a 6AN ORB plug (shown yellow) are included to seal these ports.
FUEL STARVATION PROTECTION
Several mechanisms work together to move fuel into the integrated collector and keep it full at all times. This ensures the pump(s) have adequate fuel available, even during aggressive driving. The integrated fuel tank collector is supplied with fuel from 3 different sources:
- The 1-piece anodized aluminum collector box keeps fuel trapped around the pump inlet(s).
- There are three 1-way fill valves incorporated in the bottom of the collector box that allows fuel in, but not out. Each 1-way fill valve flows 355 LPH.
- The collector box is constantly replenished with fuel returning from the pressure regulator.
ELECTRICAL
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. They have an anti-rotation feature that prevents the terminals from spinning. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
NOTES
- Single pump installations can re-use the OEM fuel pump wiring.
- It is recommended to upgrade OEM wiring to ensure the single pump is receiving full power and operating at maximum potential.
- If using additional pumps, new dedicated relays and fuses MUST be used for each pump.
- Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.
FEATURES
- Drop-In Installation
- Aluminum and Stainless Construction
- Merged 10AN ORB Female Pump-Out Port
- Compatible with Various Pumps
- Brushless Fuel Pump Capable
- Capable of Running 1-3 Fuel Pumps
- Anti-Rotation Electrical Terminals
- High Current Electrical Hardware
- Gas, Methanol, and E85 Compliant
