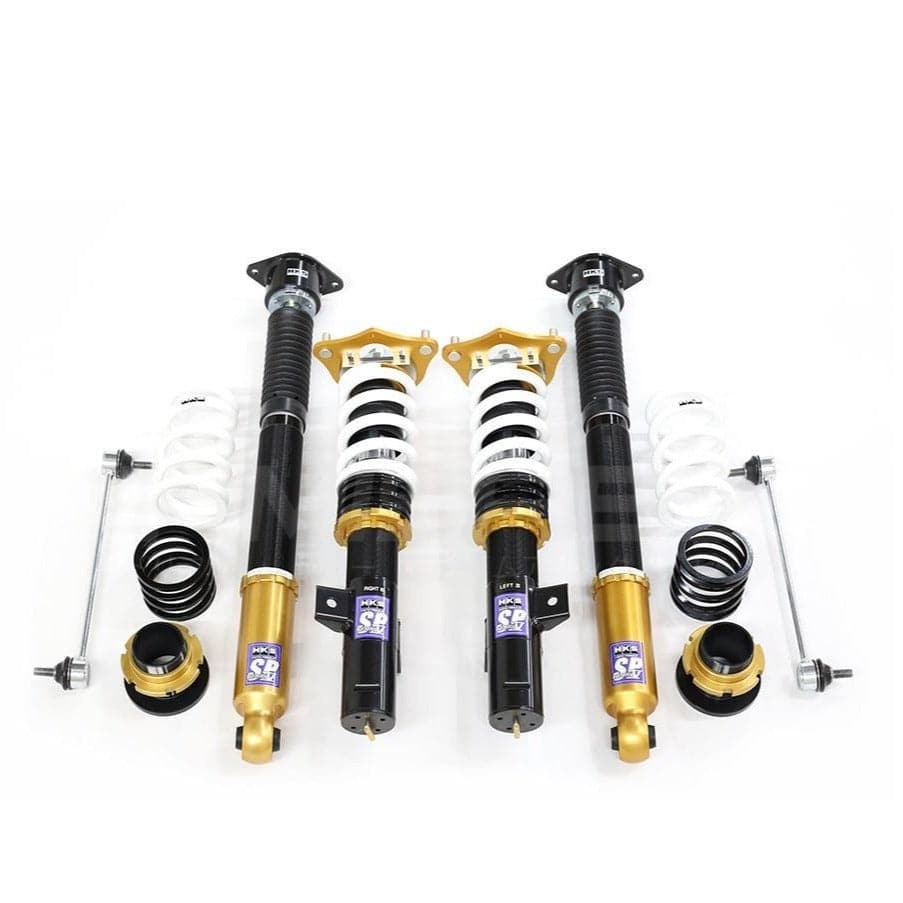

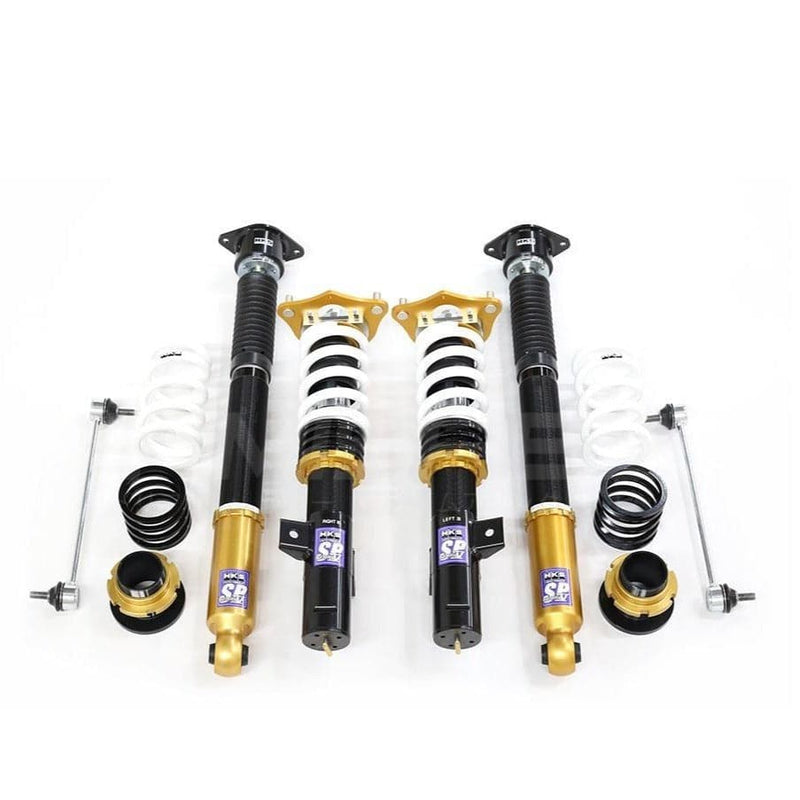

HKS Hipermax IV SP Coilovers for 17+ Honda Civic Type R FK8 (80250-AH003)

HKS Hipermax IV SP Coilovers | 17+ Honda Civic Type R FK8 (80250-AH003)

Regular price $2,480.00 USD $2,200.00 USD

Availability: In Stock Sold Out

Manufacturer: HKS

SKU: hks80250-AH003


Description

HKS took special care in designing the new Hipermax IV SP Coilovers for the FK8 Civic Type R. No short cuts were taken here, ensuring proper performance and consideration of all details pertaining to the Type R. Given the CTR's race pedigree, HKS skipped the GT and went to their highest performance SP series.

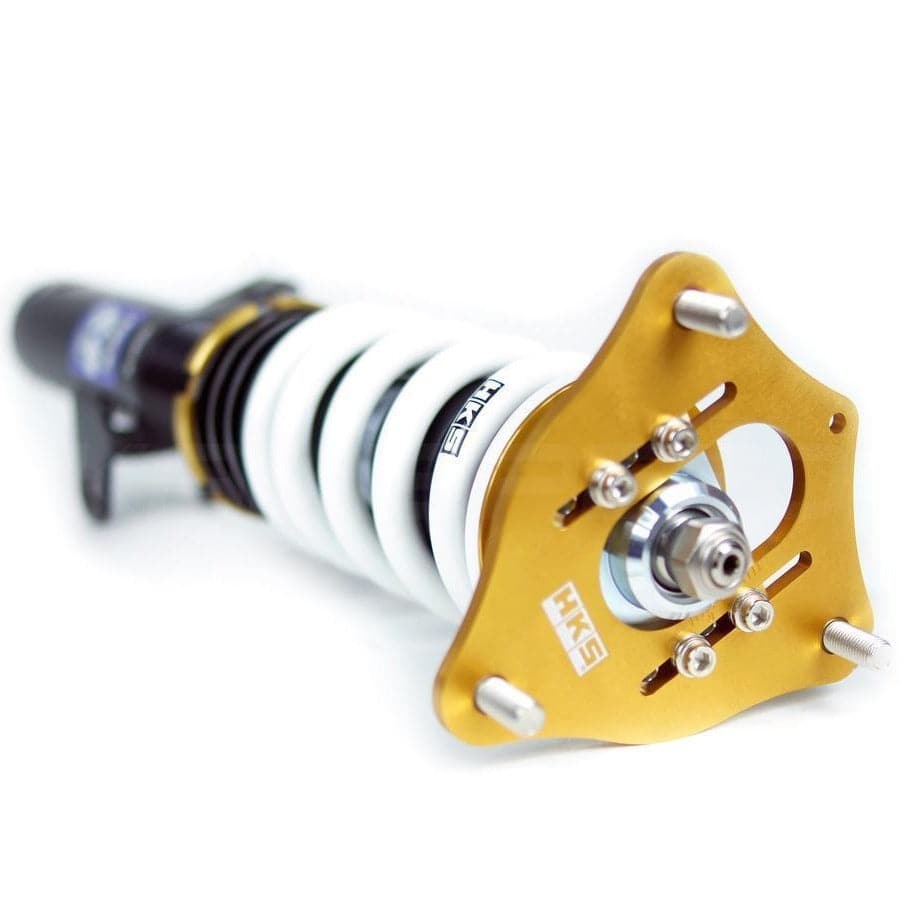

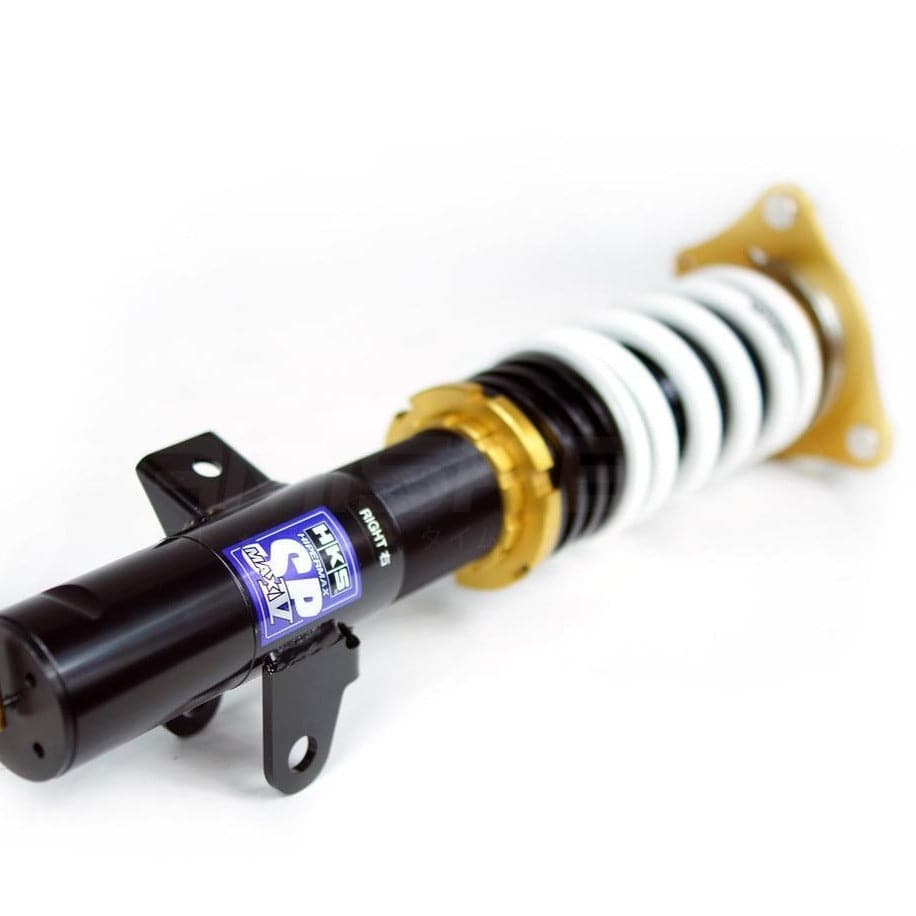

The front includes their monotube inverted piston and adds pillow-ball camber plates up top to allow for front camber adjustment. The rear uses a specialty designed upper mount which has been reinforced to ensure longevity. The rear also includes adjustment extenders that can be run into the car allowing for easy dampening adjustment.

Besides that you can expect HKS' iconic coilover valving for compliant response and performance.

Applications:
  • Honda Civic Type R [FK8] (2017, 2018, 2019)



Features

Front pillow-ball camber plate included for suspension geometry adjustment
Large 46mm Monotube Piston Design provides consistent response on the track
30-step Dampening Adjustment provides track and street flexibility
Special PNE coilover coating & dust boots provide weather protection
Special Rear Upper Aluminum Mount designed to evenly distribute load
65mm Springs allow them to be easily changed (those who want to upgrade to Swift)
Rear Extender included to allow dampening adjustment without removal of strut
Check Suspension Light will be triggered (fix sold separately)
Made in the HKS Fuji factory in Japan

Extended Information

Type: Coilover Suspension
Design: Monotube
Front Orientation: Inverted Piston
Piston Diameter: 46 [mm]
Front Top Mount: Pillow-ball Camber Plate
Rear Upper Mount: Spherical Bearing (Pillow Ball)
Lowering (Front): 23 [mm] (Range: -15 to -38)
Lowering (Rear): 26 [mm] (Range: -7 to -50)
Damping Force (Front): n/a (Rebound) & n/a (Compression)
Damping Force (Rear): n/a (Rebound) & n/a (Compression)
Spring Length (Front/Rear): 150 / 150 [mm]
Spring Rate (Front/Rear): 12 / 10 [kgf/mm]
Coilover Coating: PNE
Dampening Adjustment: 30-way
Chassis: FK8
Notes: Rear Adjustment Extender Included
Dash Light Fix: Sold Separately
