HKS Catted Bolt-On Turbo Kit 17+ Toyota 86, 13+ Subaru BRZ, & 13-16 Scion FR-S

HKS Catted Bolt-On Turbo Kit | 17+ Toyota 86, 13+ Subaru BRZ, & 13-16 Scion FR-S (11001-AT001)

Regular price $5,000.00 USD $4,521.99 USD

Availability: In Stock Out of Stock

  Normally delivers in 1-3 biz days Made to order 4+ weeks

Brand: HKS

SKU: hks11001-AT005

The HKS Turbo Kit for the 2017+ Toyota 86, 2013+ Subaru BRZ, & 2013-2016 Scion FR-S was designed and engineered to add a significant power bump to the ZN6/ZC6 chassis. It is a 100% bolt-on kit shown to provide ~350...

About The Product

The HKS Turbo Kit for the 2017+ Toyota 86, 2013+ Subaru BRZ, & 2013-2016 Scion FR-S was designed and engineered to add a significant power bump to the ZN6/ZC6 chassis. It is a 100% bolt-on kit shown to provide ~350 hp with a stock FA20. The kit can be used on it's own, or paired with other upgrades for more power (built motor tested to ~450 hp).

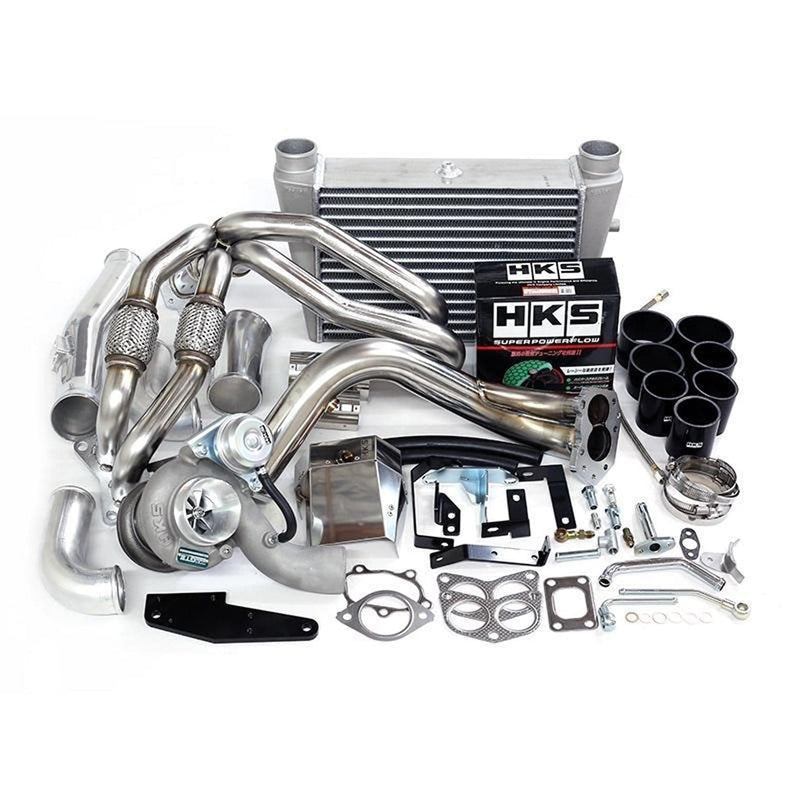

Part Included:
  • Dedicated GTIII-RS turbocharger assembly (internal wastegate)
  • All necessary oil and water lines
  • HKS Power Flow Intake Parts
  • Turbo Manifold (Exhaust Manifold) with catalyzer-less down pipe
  • Necessary heat shielding
  • Gaskets, nuts, bolts and all necessary hardware for installation
  • Includes a catalyzer on the downpipe
The kit includes all the necessary hard parts for installation. You will need to purchase engine management separately (piggy back or stand-alone), larger injectors are necessary (440cc or higher recommended), and upgrade the (for 3 BAR boost) pressure sensor.

*Modifications to the OEM bumper beam, radiator support, and fan shroud are required.
**Drilling and welding the OEM oil pan is necessary to attach the oil return
. ***Oil cooler is not included, S-Type can be used.

Applications:
  • Scion FR-S [ZN6] (2013, 2014, 2015, 2016)
  • Toyota 86 [ZN6] (2017, 2018, 2019)
  • Subaru BRZ [ZC6] (2013, 2014, 2015, 2016, 2017, 2018, 2019)
PRE-ORDER: ~3 MONTH ETA

Features

Comes with all the hard parts needed
Bolt-On turbo kit (drilling and some welding required)
Rated for ~350 horsepower on stock internals (~450+ on built motor)
Special GTIII-RS Turbo with a new billet impeller to generate high boost levels at low speeds without surging
Turbo housing designed and machined by HKS to optimize efficiency
4-1 turbo manifold design with flex piping
Some portions of exhaust manifold are welded from the inside to reduce exhaust turbulance

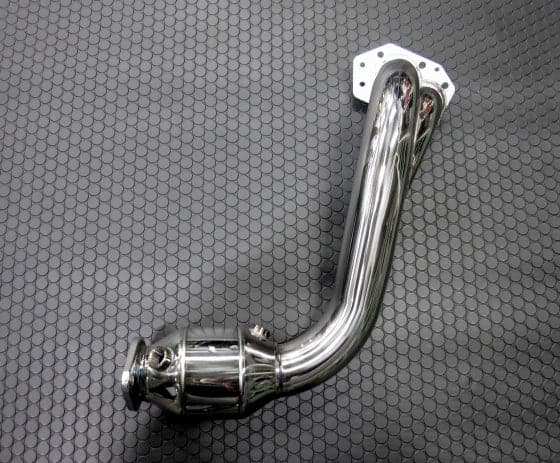

Special downpipe included for OEM exhaust fitment
Oil Cooler kit not included though shown in pictures
Downpipe Extension pipe includes a catalyzer
Made in Japan

Extended Information

Kit Type: Bolt-on Turbo Kit
Turbo Type: HKS GT III-RS
Intercooler: HKS Offset fin design
Intercooler Core Size: 390x270x100 [mm]
Wastegate: Internal actuator type
Intake: HKS Power Flow
Exhaust Manifold: 4-1 design with flex piping
Downpipe: Includes Catalyzer
Weight: n/a
Engine Code: FA20
Chassis Code: ZN6 / ZC6
Additional Requirements: Tune, Injectors, 3 BAR Pressure Sensor
Note: Some drilling and welding is required
