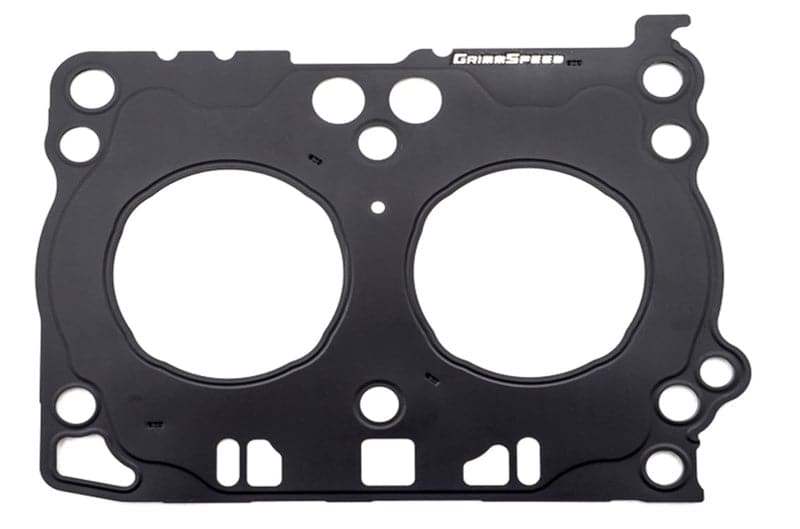

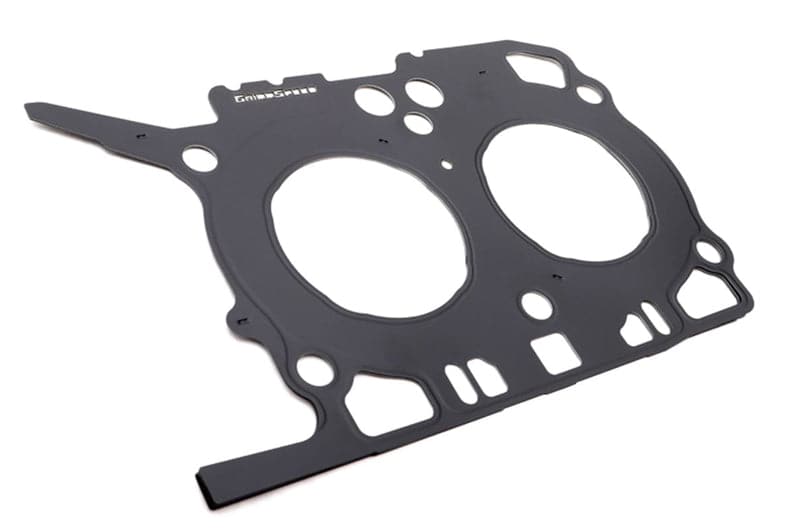

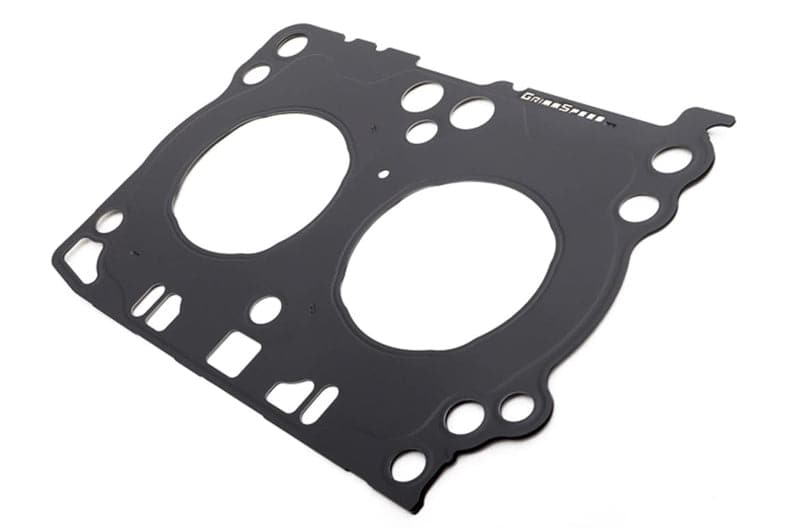

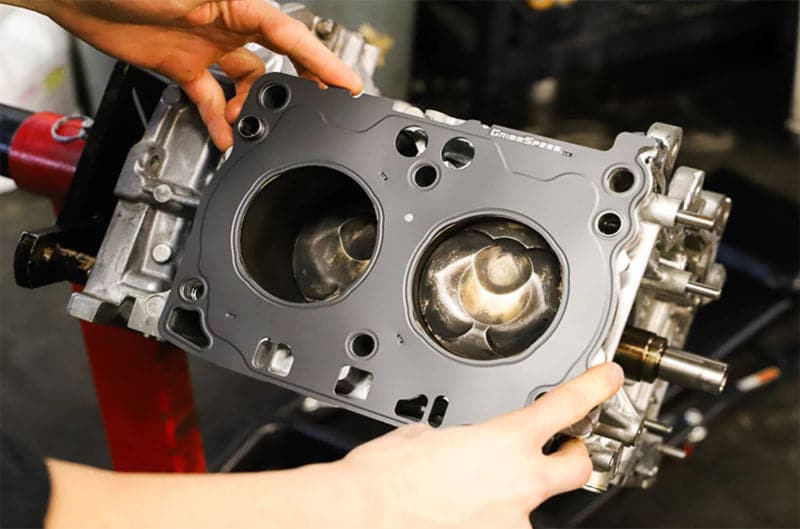

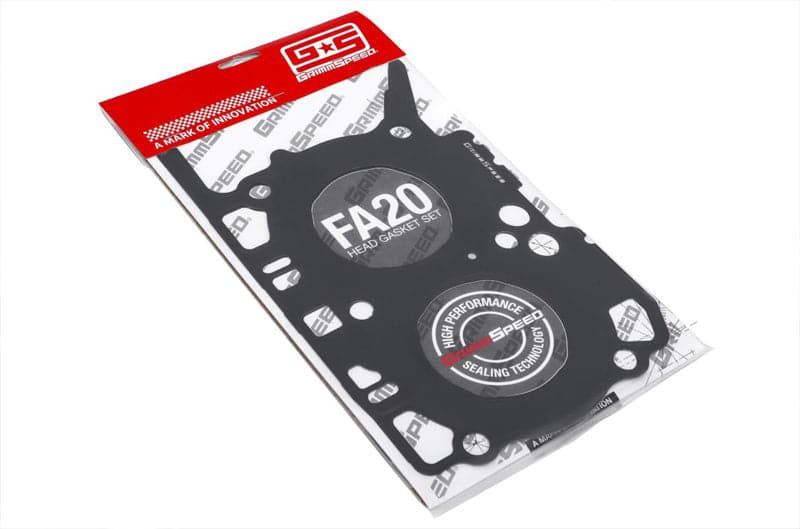

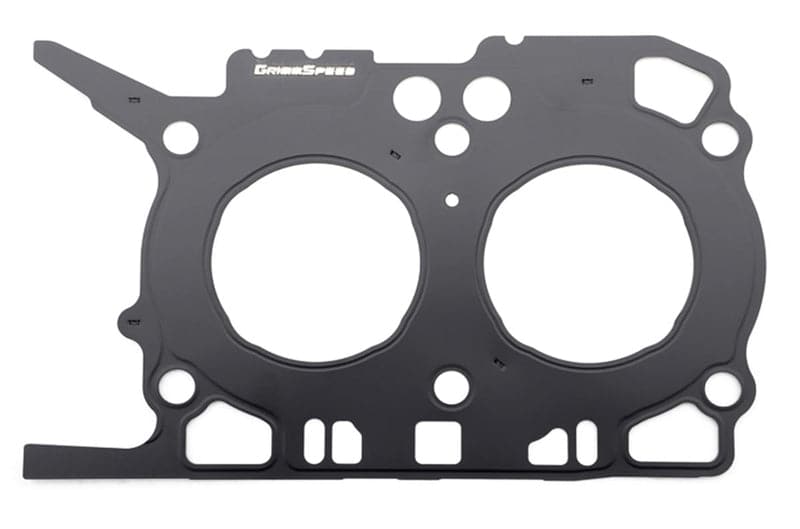

GrimmSpeed 2017+ Toyota 86 / 2013+ Subaru BRZ / (FA20A/B) Head Gasket Set 0.78mm (grm124006)

Regular price $169.00 USD Sale price $169.00 USD Regular price $169.00 USD
Sold Out
SKU: grm124006
Product Description

The GrimmSpeed Head Gasket features unique multi-layer steel (MLS) construction, in which multiple grades are used to give an optimal surface and combustion chamber sealing as they are torqued down. The top and bottom layers feature a Nitrile Rubberized Coating that helps accommodate a rougher RA surface finish of up to 50microinch. This acts to better seal the non-critical areas of the gasket. Additionally, the gasket edge includes a folded stopper layer that allows for optimal sealing for the combustion chamber. This is done to help reduce the chances of combustion gasses causing head gasket failures under extremely high cylinder pressures that built engines can experience. After talking to numerous engine builders/tuners it was clear that creating a variety of gasket thicknesses was key for pairing them with the right build. With that in mind, we’ve made the gaskets available in multiple thicknesses (.78, 1.05, 1.45mm) to help fine-tune each individual build. In addition, the slightly oversized bore diameters will allow for up to 0.5mm overbore. The FA gaskets were designed to be compatible in both FA20A (WRX) and FA20B (BRZ, FRS, Toyota 86). Meaning that it will be just as much at home in a lower power NA build as it will be in a high power boosted application. We’ve outdone ourselves this time, The GrimmSpeed Head Gaskets carry on the legacy of quality that you’ve come to know from our other extremely popular gaskets.

Applications

  • Toyota 86 (2017, 2018, 2019, 2020)
  • Subaru BRZ (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)

Features

  • Sold as a Set/Pair - L and R side specific
  • Die Cut Multi-Layer [Stainless] Steel (MLS) Construction - Provides smooth edge finish and consistency from batch to batch, ±0.001” manufacturing tolerance
  • Folded Stopper Layer to Better Seal the Combustion Chamber
  • .25micron Nitrile Rubber Layer Coating - Reduces chances of leaking on imperfectly smooth mating surfaces over non-coated gasket.
  • Compatible with both FA20A (WRX) and FA20B (BRZ, FRS, 86)
  • Accommodates up to 86.5mm bore
  • 0.78mm, 1.05mm, 1.45mm thickness (after crushing)
