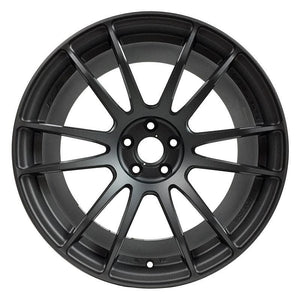

Gram Lights 57Xtreme SP Spec 18x9.5 +40 5x100 Matte Graphite

Regular price $477.42 USD Sale price $477.42 USD Regular price $544.63 USD
Sale 12.34% $67.21 USD (12.34%)
Special order - Ships in 20+ weeks
Product Description
The 57Xtreme by Gram Lights are high performance cast wheels made for race and drift applications! This particular model takes up the stakes by improving weight reduction via machined spokes giving it the signature SP (Sports Pioneer) Spec!

The 57Xtreme are optimized with a strong split 6 spoke design with sharp lines to accentuate the concavity. The split 6 spoke design is reminiscent of the Volk TE37 via their use of negative space, certainly something that is iconic to the Rays brand!

  • 18 x 9.5 | Positive 40 Offset | 5 x 100 PCD | 21 lbs | Face 2 Max Concave
  • Subaru BRZ [ZC6 Chassis] (2013, 2014, 2015, 2016, 2017, 2018) - requires coilovers for inner wheel clearance (3mm spacers may be used instead) and may require roll depending on tire size and drop
  • Scion FR-S [ZN6 Chassis] (2013, 2014, 2015, 2016) - requires coilovers for inner wheel clearance (3mm spacers may be used instead) and may require roll depending on tire size and drop
  • Toyota 86 [ZN6 Chassis] (2017, 2018) - requires coilovers for inner wheel clearance (3mm spacers may be used instead) and may require roll depending on tire size and drop
  • Subaru Impreza WRX [GD, GV/GR Chassis] (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014) - pre 2011 models may require fender rollin depending on tire size, camber, and drop.
  • Subaru Impreza WRX STi [GD] (2004) - rear fender rolling required for standard tire size but confirmed BBK clearance


Cast one-piece wheel meeting JWL + R Spec 1 standards
Machined spokes for max weight reduction
Sharp lines maximize concavity
Designed for Drift and Race applications
Special order SP Spec
High speed air valve included
Optional Center caps available
Made by Rays Co., Ltd. in Japan

Extended Information

Type: Car Wheel
Material: Proprietary Rays Aluminum Alloy
Construction: Cast JWL + R Spec 1 standards
Weight: 21 lbs
Finish: Matte Graphite
Concavity: Face 2 (Max)
Diameter: 18
Width: 9.5
Offset: Positive 40
Inset: 40
PCD: 5 x 100
Hub Clearance: 29 to 15 [mm]
Center Bore: 65.1 [mm]
Air Valve: Included
Center Caps: Sold separately require adapter ring
Confirmed BBK Clearance: 04 STI Brembo
Country of Origin: Japan
Warranty: Rays Manufacturing Defect Warranty
