ICON 2023+ Sequoia 3-4" Stage 3 Suspension System (K53233)

Regular price $2,473.75 USD Sale price $2,473.75 USD Regular price $2,473.75 USD
2 in stock!
SKU: icoK53233
Product Description

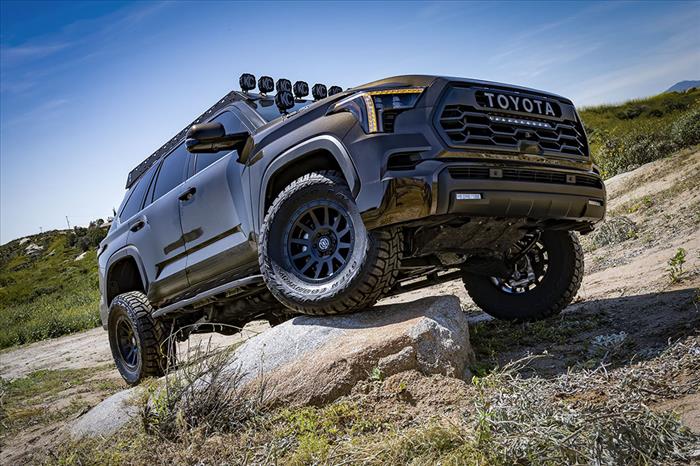

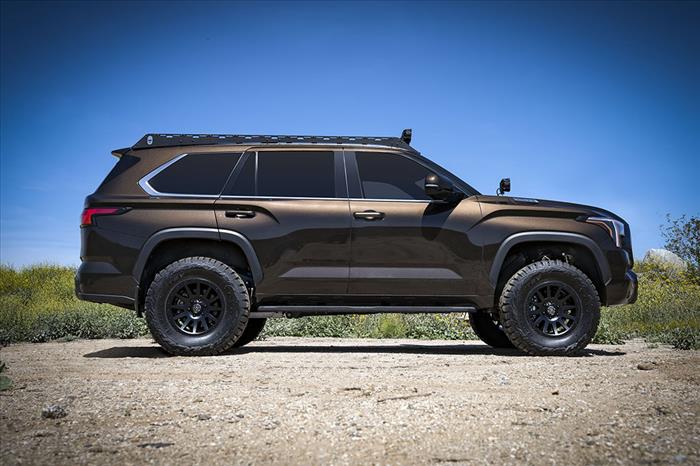

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2023-2024 Toyota Sequoia is the entry-level system that includes ICON V.S. 2.5 Series threaded-body coilovers for the front. These coilovers enhance both on- and off-road performance while providing front-end lift and leveling, delivering an improved stance and accommodating up to 35” tires. The system also incorporates the innovative 2.5 EXP Series coilover shocks and a sway bar drop kit for the front, along with dual rate coil springs and proven 2.0 nitrogen-charged monotube shocks with internal reservoirs at the rear. The Stage 3 system is equipped with ICON V.S. 2.5 Series front coilovers featuring internal reservoirs. These adjustable coilovers offer a lift range of 3 to 3.75 inches over stock when paired with OE upper control arms, enabling the use of larger, more aggressive wheels and tires. With vehicle-specific shock length and valving, a larger 2.5” shock body, and an increased piston area compared to stock components, this setup provides up to 40% more suspension travel while delivering exceptional ride quality and suspension performance on all terrains.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Application

  • Sequoia (2023, 2024)

Features

  • Vehicle specific design for 2023-2024 Toyota Sequoia
  • 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
  • Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable

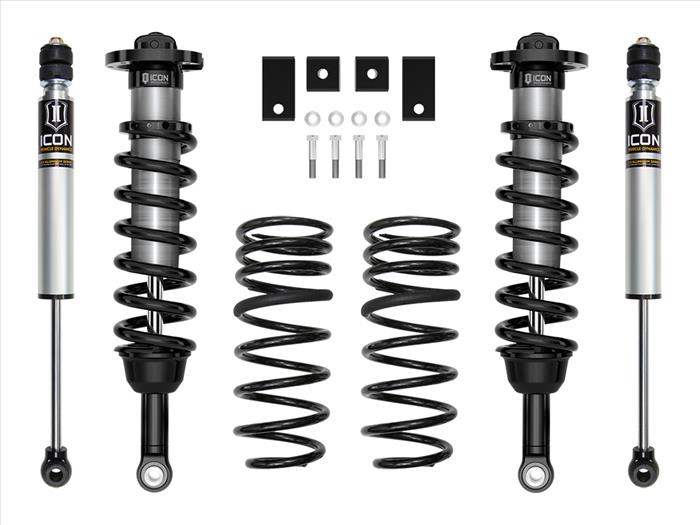

System Components

  • 58670 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA 2.5 VS IR COILOVER KIT
  • 55154 (QTY: 1) | 22-24 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT
  • 56516 (QTY: 2) | 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-3" REAR 2.0 VS IR
  • 51212 (QTY: 1) | 23-24 SEQUOIA 2" DUAL RATE REAR SPRING KIT

Important Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • APPLICATION NOTE #142: Not Compatible With Tundra/Sequoia Equipped With Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4WD Models
  • APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.
  • APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
  • TECH NOTE: Most Sequoia submodels will have front lift height range of 3-3.75” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-1.75" over stock and remain at stock height in the rear.
