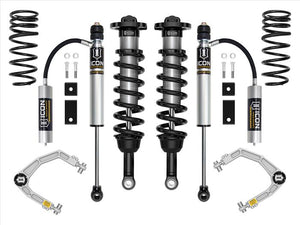

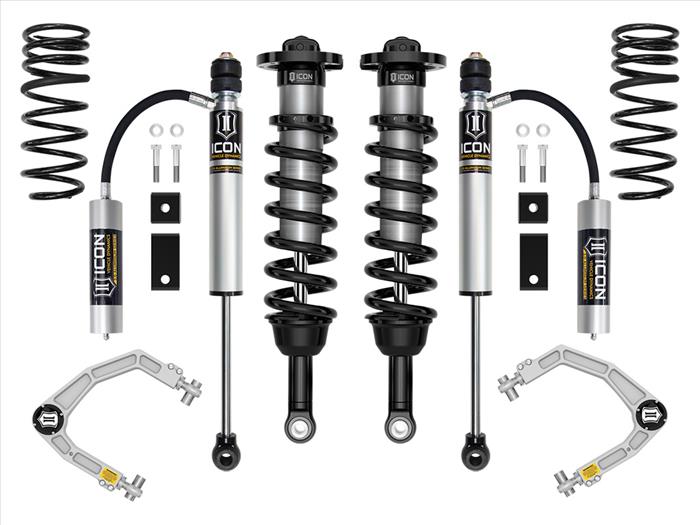

Icon 2023+ Toyota Sequoia Stage 5 3-4.5in Billet Suspension System (K53235)
The ICON Vehicle Dynamics Stage 5 complete suspension system for the 2023-2025 Toyota Sequoia enhances the Stage 4 system by upgrading the 2.0 Aluminum Series rear shocks to remote reservoir versions. This improved system provides better performance both on and off-road, featuring greater heat dissipation for the rear shocks, enhanced alignment specifications, and an increased front-end lift height range to accommodate tires up to 35 inches. In addition to the 2.0 remote reservoir rear shocks, the Stage 5 system includes dual-rate rear coils, a 2.5 Series internal reservoir front coilover shock, and a billet aluminum front upper control arm combination, along with a front sway bar drop kit. The system features VS 2.5 Series internal reservoir front coilovers specifically designed for the 2023-2025 Toyota Sequoia. These adjustable coilovers provide a lift height adjustability of 3 to 4.5 inches over stock when paired with the ICON billet aluminum front upper control arms. This allows for the use of larger, more aggressive wheel and tire combinations. The vehicle-specific shock length and valving, combined with the larger 2.5-inch shock body and increased piston area compared to stock components, result in maximum travel—up to a 40% increase over stock—along with superior ride quality and suspension performance in both on-road and off-road conditions. The included ICON billet aluminum upper control arm kit is designed to enhance the overall performance of the 2023-2025 Toyota Sequoia by correcting front-end geometry, increasing camber and caster adjustment, and improving clearance for suspension components. Additionally, the kit replaces the original equipment (OE) ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO, allowing for full bump and droop travel of the front suspension while eliminating binding issues.The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for shorter rear ride heights, these coil springs yield 2" of rear lift over stock on a non-TRD Sequoia or 0? of rear lift height on a Sequoia equipped with the TRD Off-Road package, allowing for level a stance front to rear. Rounding out the Stage 5 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Application
- Toyota Sequoia (2023, 2024, 2025)
Features
- Vehicle specific design for 2023-2025 Toyota Sequoia
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 3-4.5? of front lift over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
- 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
