Perrin 08-12 Subaru STi Hatchback / 11-12 STi Sedan Master Cylinder Bracket - Black (perPSP-BRK-401BK)
In Stock. Pre-order.
Ready To Ship!

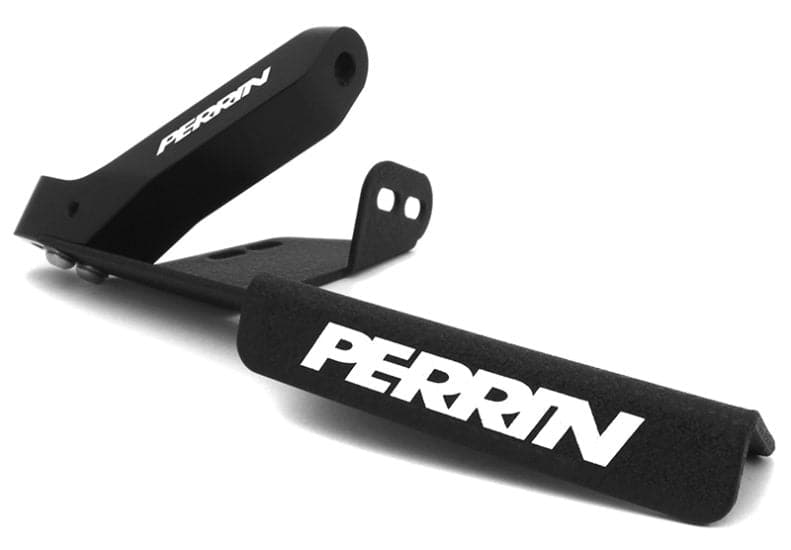

The PERRIN Master Cylinder Brace stops the master cylinder from moving inadvertently, increasing the firmness and responsiveness of the brake pedal.
Your brake pedal is connected to the thin sheet metal firewall which flexes as you apply the brakes. The firewall is not stiff enough to deal with the constant and repeated forces while applying the brakes. The PERRIN Master Cylinder Brace creates a bridge between the firewall, master cylinder, and shock tower, significantly reducing flex in the firewall while braking.
The PERRIN Master Cylinder Brace significantly reduces flex at the firewall, so you get a solid brake pedal feel with every application of the brakes. This is very noticeable under heavy braking and even slowing for a stop sign. The difference can immediately be felt after installation.
The PERRIN Master Cylinder Brace is designed to attach strategically to multiple points on the shock tower. This helps reduce flex in the brake master cylinder by creating a solid connection between it and the chassis. To further aid in stiffening or tightening up this connection, included is an adjustable screw that allows tension to be preloaded on the master cylinder.
This unique PERRIN Master Cylinder Brace is constructed of CNC Machined 6061 aluminum, and CNC formed steel. This combination of different materials is used to add extra support compared to other systems. Making this from two CNC parts instead of a series of welded steel pieces keeps the part extremely stiff and light.
The aluminum portion of the PERRIN Master Cylinder brace is anodized black with a bold PERRIN logo laser engraved into the upper surface. The steel section is wrinkled powder coated in your choice of red or black to match your other PERRIN parts. It perfectly combines an aesthetic improvement to your engine bay as well as a braking feel.
- Subaru STi Hatchback (2008, 2009, 2010, 2011, 2012)
Subaru STi Sedan (2011, 2012)
Body Material 6061 T6 Aluminum
Body Material CNC Formed Steel
Finish Texture Powdercoat
WHAT'S IN THE BOX?
(1) PERRIN Master Cylinder Brace
(1) PERRIN Master Cylinder Bracket
(1) M12 Socket set the cup
(1) M12 Jam nut
(6) M6 Fender washer
(5) M6 Button head socket cap screw
(1) M6 Socket set screw
(2) M6 Stainless steel nut
(1) M8 nut
(1) M8 Fender washer
(2) M8 Flat washer
(1) M8 Socket cap screw
(4) M6 Flat washer
(3) M6 Button head socket cap screw
(4) Zip ties
(1) M6 Short arm hex key
(1) M4 Short arm hex key
(1) Bracket for cable tie-down
