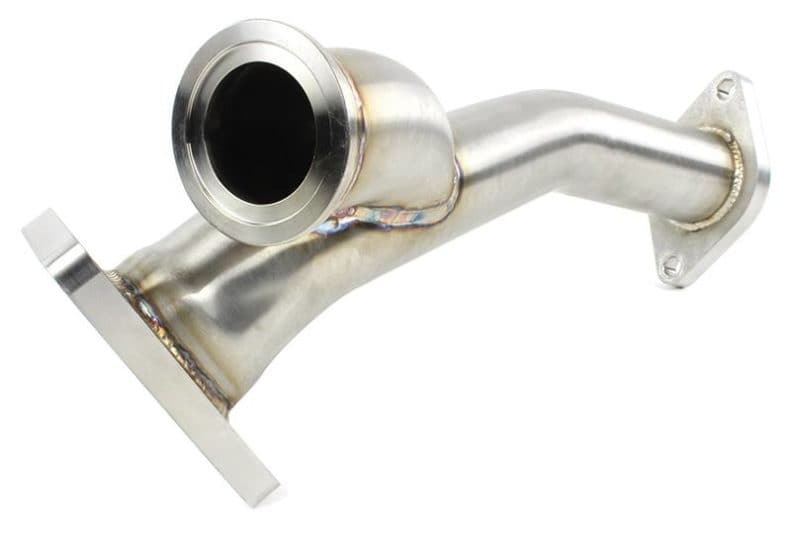

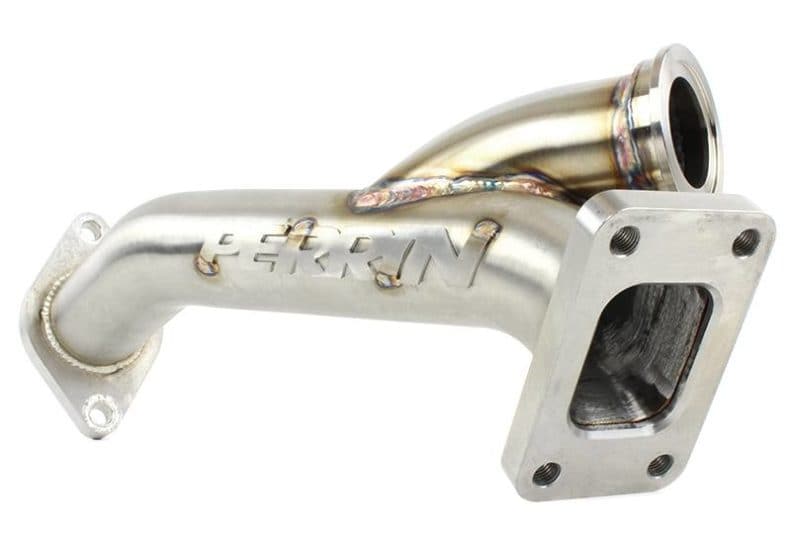

Perrin 02-21 Subaru WRX/STi Turbo Kit Rotated Up Pipe (perPSP-TKS-800)
The most popular turbos and wastegates are designed to accommodate the PERRIN Rotated Turbo Uppipe for Garrett Turbos. Many alternatives are available thanks to this unusual architecture to attain desired horsepower levels!
The stock turbo location has a narrow pathway under the intake manifold for the intake. This slim path only has room for a small turbo with a 2.4" inlet. PERRIN Rotated Uppipes place the turbo in the optimum position by rotating and mounting the turbo away from the intake manifold. This creates space for larger turbos and external wastegates while maintaining smooth transitions from uppipe to downpipe. The PERRIN Rotated Uppipes are able to produce as much horsepower as the turbo you choose allows. Designed for a custom install, the PERRIN Uppipe allows you to choose your own turbo and exhaust system setup supporting 400-800+ horsepower. The PERRIN Rotated Uppipe is formed from 2", 304 stainless steel tubing that is precision mandrel-bent, eliminating the need for a flex joint. The 1/2" CNC flanges are machined from 304 stainless steel and counterbored for smoother transitions. The external wastegate is precision TIG welded to the uppipe with a smooth transition from uppipe to wastegate for increased exhaust flow. The PERRIN Rotated Uppipe is designed to fit turbos that use desired horsepower levels. The wastegate dump tube with 2.5" V-band on the PERRIN Rotated Uppipe is designed to fit with the populat Trial MV-R/44mm, Turbosmart Compgate 45, and Precision 46mm Wastegate. Proper ECU Tuning is required for the safe operation of the engine with this product. Engine performance and fuel economy will also suffer without tuning.
NOTES
- Please note, other components (turbo, wastegate, exhaust, intake, hardware, etc..) are needed for proper installation
APPLICATIONS
- Subaru WRX/STi (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
FEATURES
- CNC Mandrel Bent 2" 304 Stainless Tubing
- Brushed Stainless Steel Finish
- 1/2" CNC Machined Flanges
- Designed To Fit Turbos That Use A T3 Style Inlet
- Wastegate Dump Tube With 2.5” V-Band Flange
WHAT'S IN THE BOX?
- (1) PERRIN Uppipe for Rotated Garrett Turbo
- Warranty & Instructions
