Mishimoto 2022+ Subaru BRZ/Toyota GR86 Oil Cooler Kit - Black (MMOC-BRZ-22NTBK)
The Subaru BRZ and Toyota GR86 have a strong lineage built on navigating corners with smooth drifts and speeding down gravel forest roads in pursuit of fast sector times. However, despite this heritage, both the BRZ and GR86 need some enhancements to meet modern performance demands. The stock oil cooling system in the FA24 engine utilizes a liquid-to-liquid cooler that transfers heat from the oil to the engine coolant. This presents a problem because the coolant is responsible for cooling both the engine and the oil. When pushing the car hard for 20 minutes—revving high and sliding sideways—airflow through the radiator is minimized while heat buildup reaches its peak. The solution is to install a supplemental cooler dedicated solely to cooling the engine oil. Fortunately, we’ve developed such a solution.
This Mishimoto performance oil cooler kit for your 2022+ Subaru BRZ or Toyota GR86 adds a robust 19-row external oil cooler to the otherwise anemic stock system. This cooler takes the load off your engine coolant and adds 0.75 quarts of oil to the system for even greater cooling and lubricating performance. In thermostatic spec, this kit eliminates the liquid-to-liquid cooler, reducing failure points and allowing each system to operate completely independently for maximum performance. For dedicated race cars that need full cooling, right away, the non-thermostatic option retains the stock cooler to help get oil temps and viscosity in operating range fast. Our direct-fit mounting bracket places the oil cooler front and center in the grille for maximum airflow, while the -10AN braided-steel lines ensure constant flow through the system. The included heat shielding sleeve adds another layer of protection against abrasion while keeping engine bay heat out of the oil. This performance oil cooler kit includes everything you need for installation, so you can get your 2022+ BRZ or GR86 back on the street or track in no time. Like all Mishimoto products, this kit is backed by our Mishimoto Lifetime Warranty.
Application
- Subaru BRZ/Toyota GR86 (2022, 2023, 2024, 2025)
Features
- Direct-fit for 2022+ Subaru BRZ and Toyota GR86

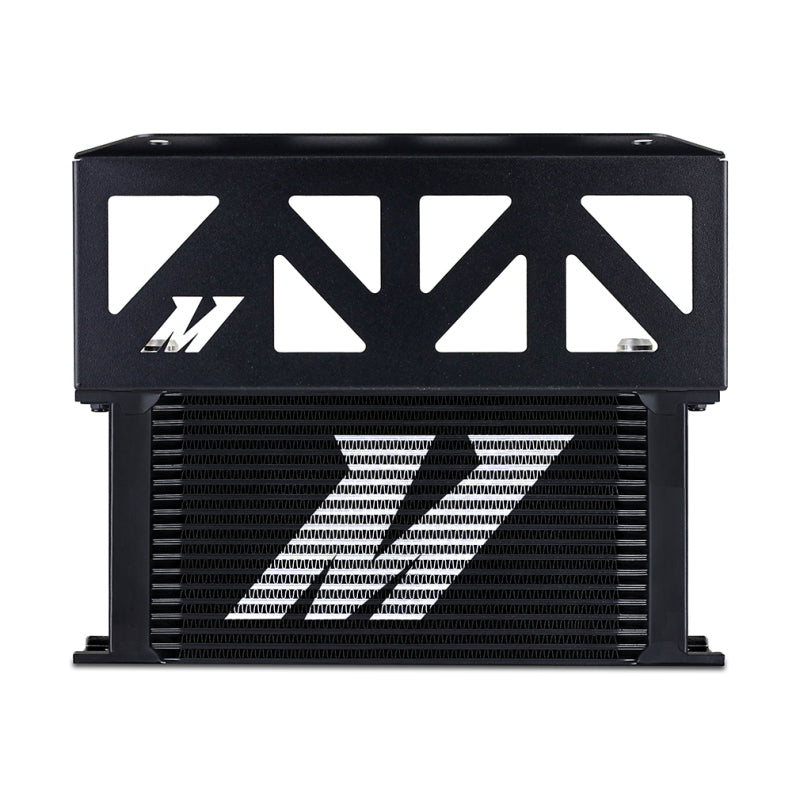

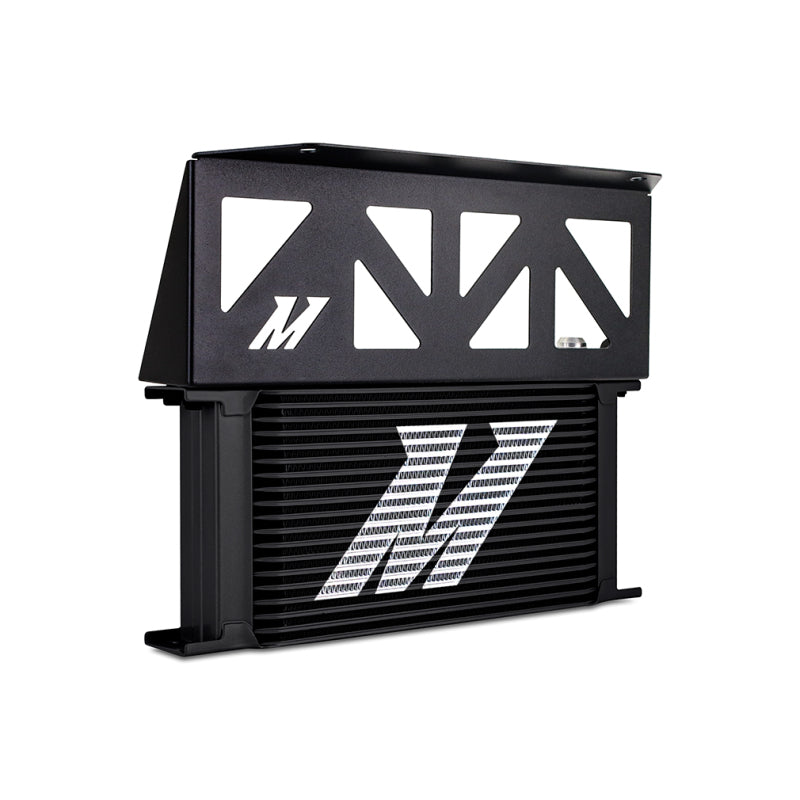

- Robust 19-row external cooler adds significant cooling power
- Adds 0.75 quarts of oil to system for improved cooling and lubrication performance
- Thermostatic option eliminates stock cooler ensuring maximum performance
- Non-thermostatic option retains stock cooler for fast warmup at the track

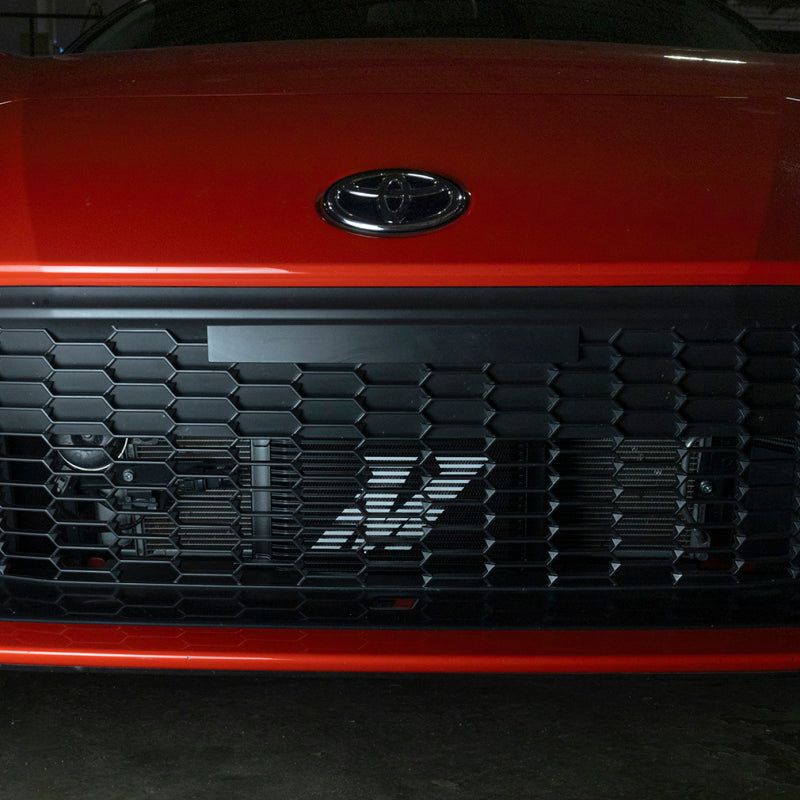

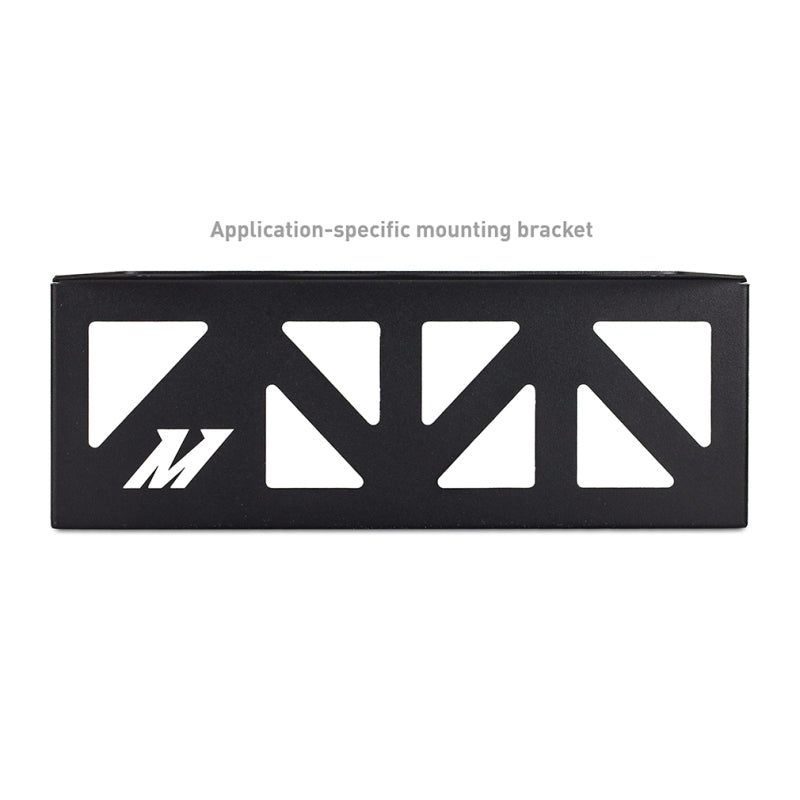

- Durable steel bracket mounts cooler in grille for maximum airflow

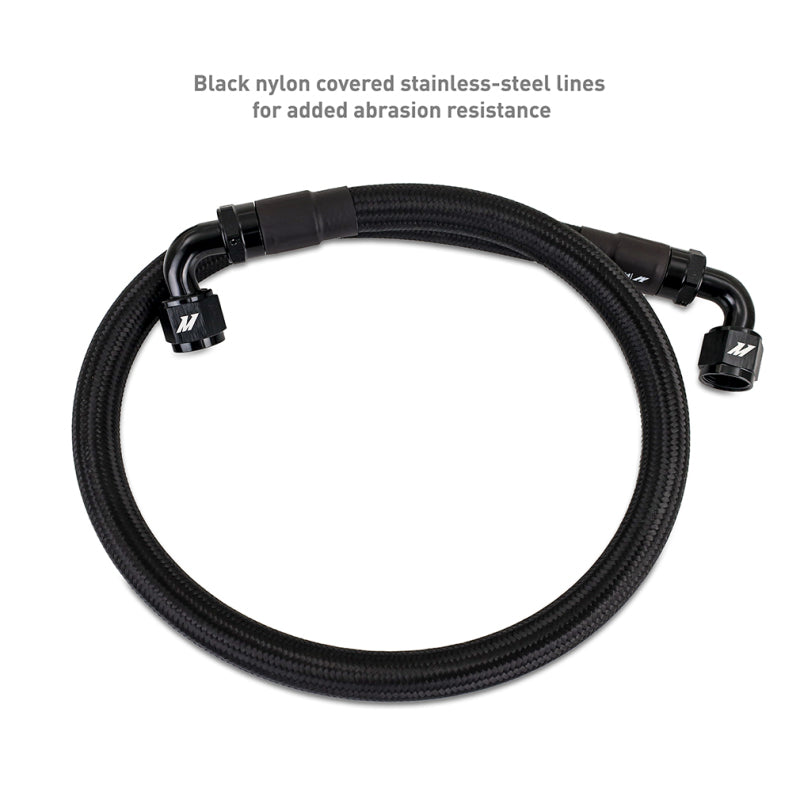

- -10AN braided steel lines ensure ample, reliable flow

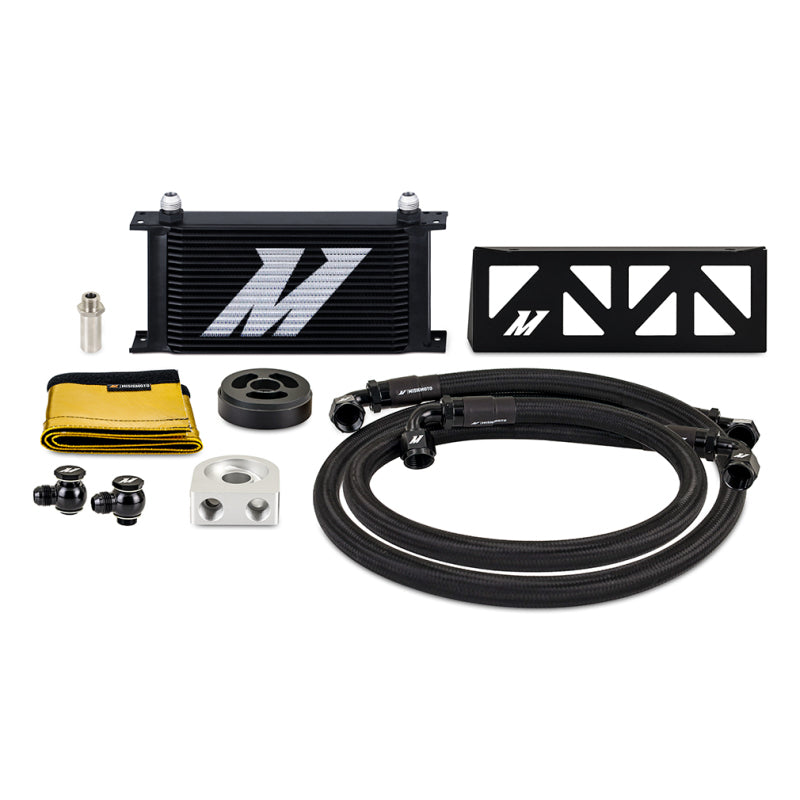

- Includes everything needed for installation
- Mishimoto Lifetime Warranty
Specifications
| Rows | 19 |
|---|---|
| Core Construction | Stacked Plate |
| Core Length (in) | 11 |
| Core Height (in) | 5.43 |
| Core Thickness (in) | 1.97 |
| Engine Codes | FA24D |
| Caution | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. |
| Inlet | -10AN |
| Outlet | -10AN |
| Applications | Toyota GR86 H4 2.4L 2022+ Subaru BRZ H4 2.4L 2022+ |
| Fluid Capacity (qts) | 0.75 |
