- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: Compatible with 2024 Tacoma, Land Cruiser 250 Series, and Lexus GX550 equipped with 0-3” of front lift over stock
- TECH NOTE: Also available with all-new gold anodized finish. See part number 58552GDJ.
ICON 2024 Toyota Land Cruiser 250 Series / 2024 Lexus GX550 / 2024+ Toyota Tacoma Billet UCA DJ Pro Kit (58552DJ)
Regular price
$1,961.63 CAD
Sale price
$1,961.63 CAD
Regular price
$1,961.63 CAD
Product Description

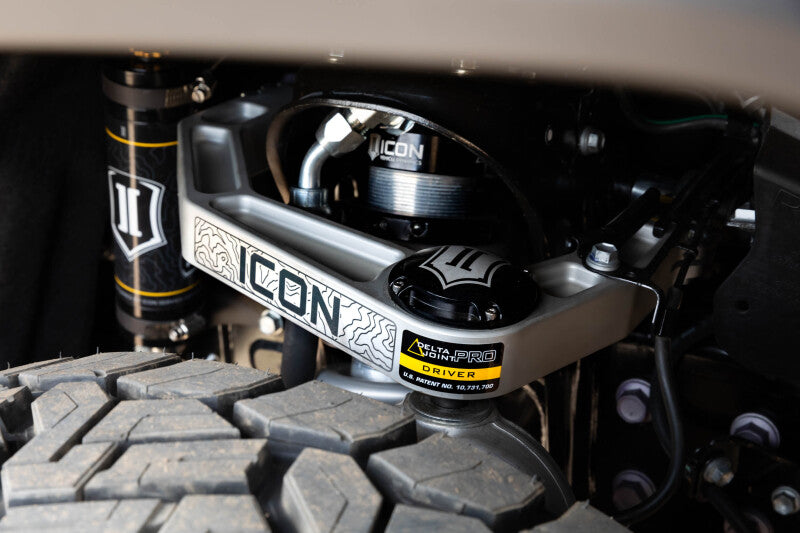

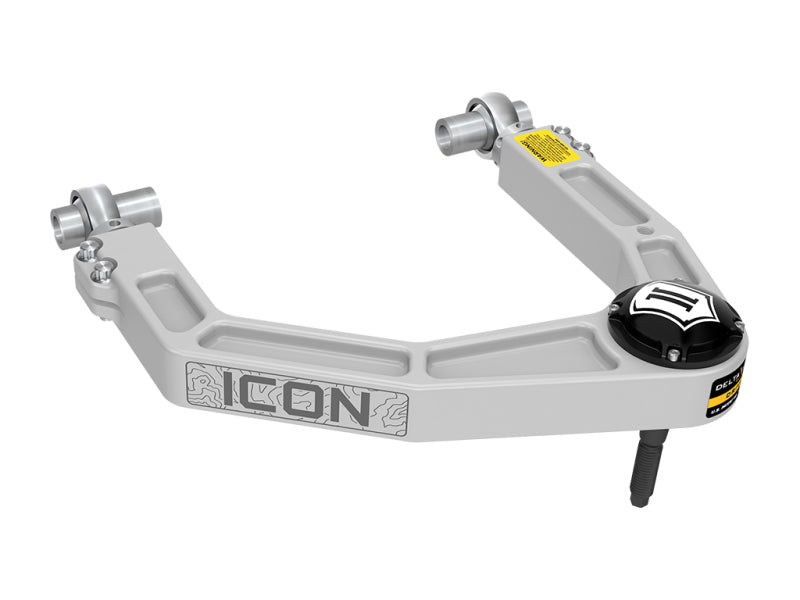

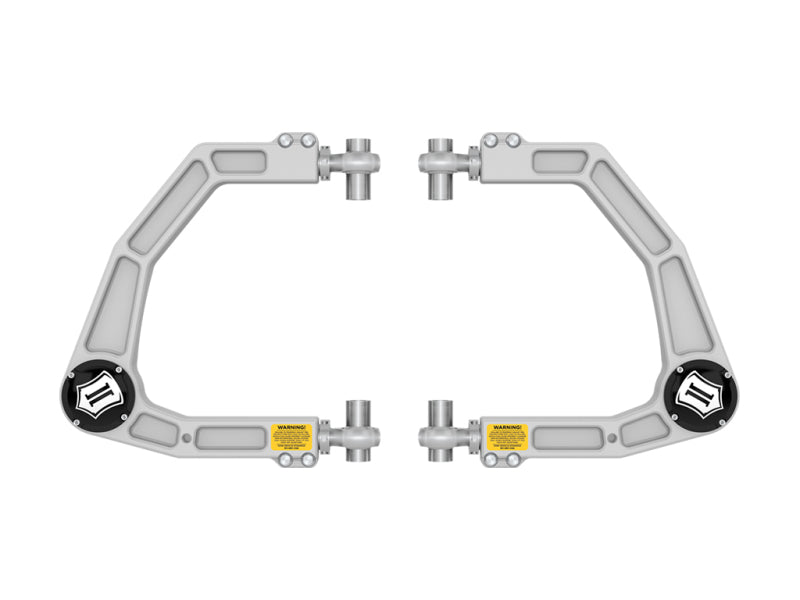

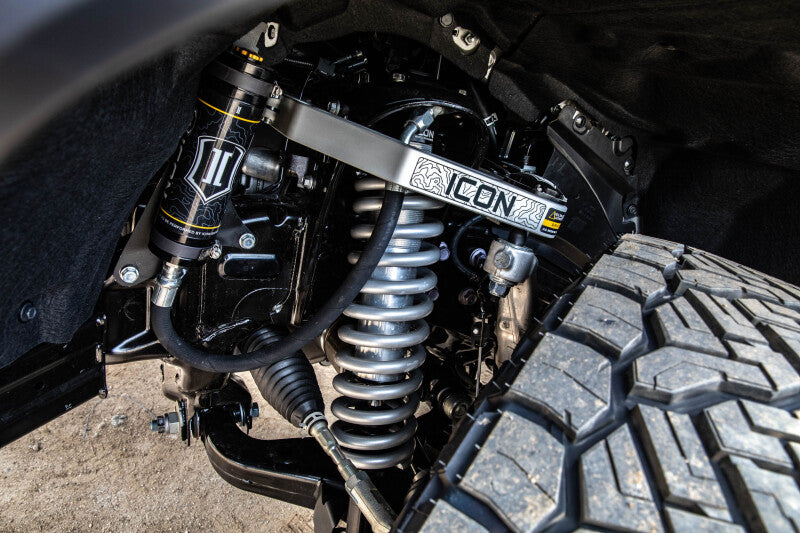

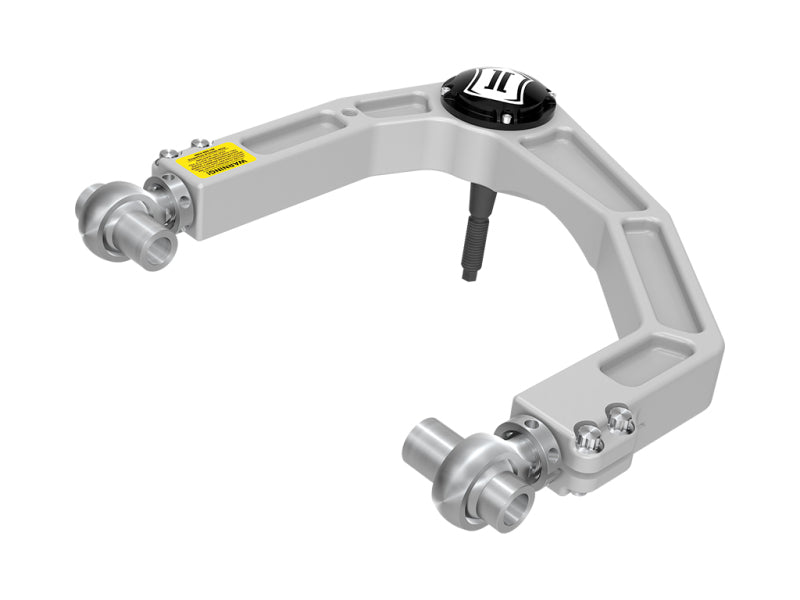

This ICON billet aluminum upper control arm kit is designed to enhance the overall performance of the 2024 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series, and the 2024 Lexus GX550. It offers corrected front-end geometry, increased camber and caster adjustment, and improved clearance for suspension components. Constructed from CNC-machined 6061 billet aluminum, the kit utilizes a hybrid H-beam cross-section that is lightweight and more resistant to bending forces compared to traditional tubular arms. The OE ball joint is replaced with the new, serviceable, and rebuildable ICON Delta Joint PRO, allowing for full bump and droop travel of the front suspension while eliminating any binding. Additionally, FK Rod End 3/4” Heim joints provide precise and smooth function throughout the entire range of travel. ICON’s signature double adjuster sleeve enables convenient on-vehicle camber and caster adjustments. The kit includes all the necessary components and hardware for a complete installation, making these billet upper control arms the perfect front-end upgrade for the 2024 Toyota Tacoma, Toyota Land Cruiser 250 Series, and Lexus GX550.
ICON suspension components featuring the all-new Delta Joint PRO represent the pinnacle of off-road performance and durability. The Delta Joint PRO is ICON's innovative suspension articulation joint, combining the long-lasting durability of factory-style ball joints with performance and strength that surpasses traditional motorsports-style ball joints. This joint boasts a rebuildable and serviceable design, allowing any component to be removed, inspected, and replaced without needing to purchase an entirely new joint. Strength and durability are enhanced by utilizing a larger ball, offering 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. Above all, improved performance is central to the Delta Joint PRO, providing a full 90 degrees of articulation—an enhancement of 14% in range of motion compared to the highly capable original Delta Joint. This maximizes bind-free suspension movement throughout the complete travel range. The Delta Joint PRO is engineered to withstand tough conditions, featuring a chromoly ball and shaft with a bearing surface hardened to Rockwell C 55. The replaceable races are constructed from graphite-impregnated sintered metal, precision-machined to ensure a flawless metal-to-metal bearing interface. Additionally, we have redesigned the lubrication system with channels that efficiently distribute grease without extending past the bearing seal.
Application
- Toyota Land Cruiser 250 Series (2024)
- Lexus GX550 (2024)
- Toyota Tacoma (2024, 2025)
Features
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
Tech Information
