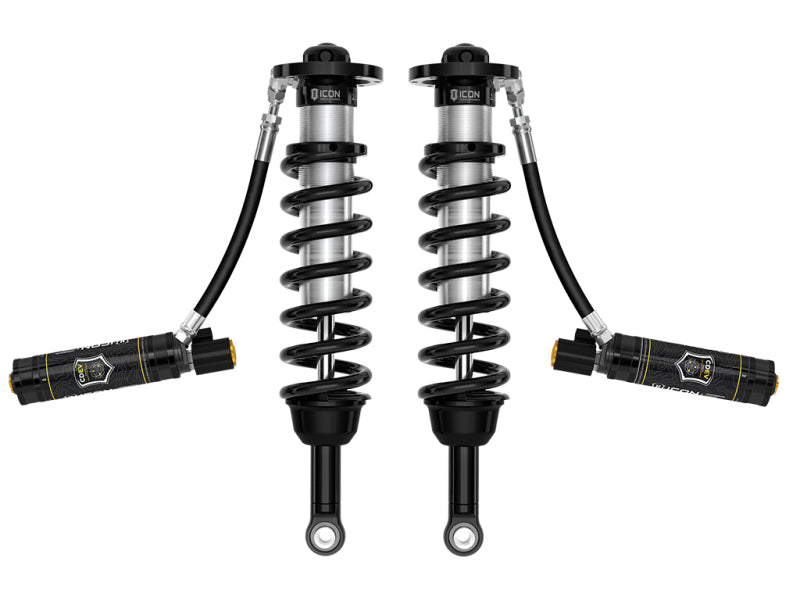

Icon 2024 Toyota Land Cruiser 250 2.5 Series Remote Reservoir Coilover Kit w/ CDEV (58791E)

$3,713.16 CAD

1 in stock!

SKU: ico58791E

Product Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are a remarkable upgrade for the front suspension of the 2024 Toyota Land Cruiser 250 Series. These adjustable coilovers provide 1.25 to 3 inches of lift, enabling the fitment of larger and more aggressive wheels and tires. Engineered with vehicle-specific shock lengths and valving, and featuring a robust 2.5-inch shock body for greater piston surface area, these shocks—especially when paired with an ICON front differential drop—deliver maximum suspension travel, exceptional ride comfort, and enhanced performance both on and off the road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser.

Application

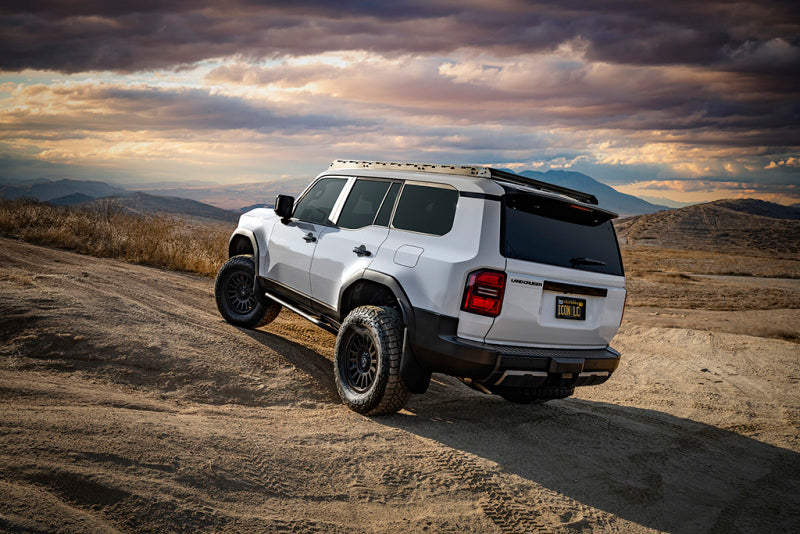

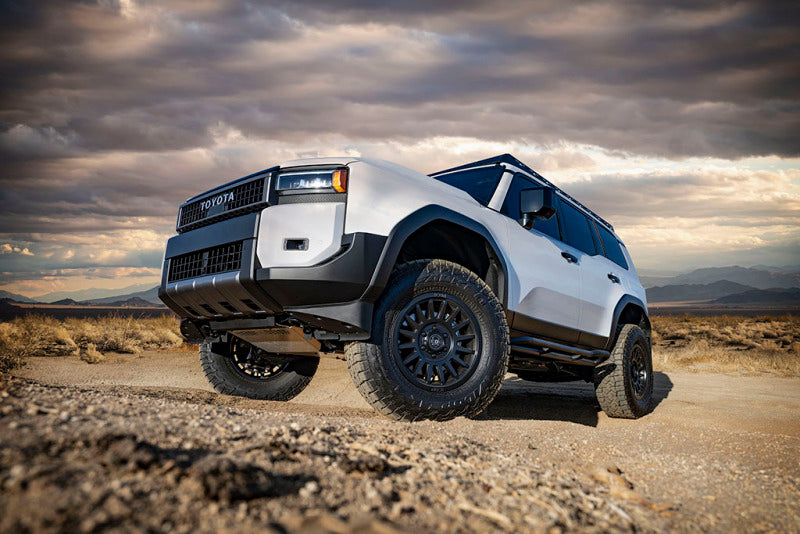

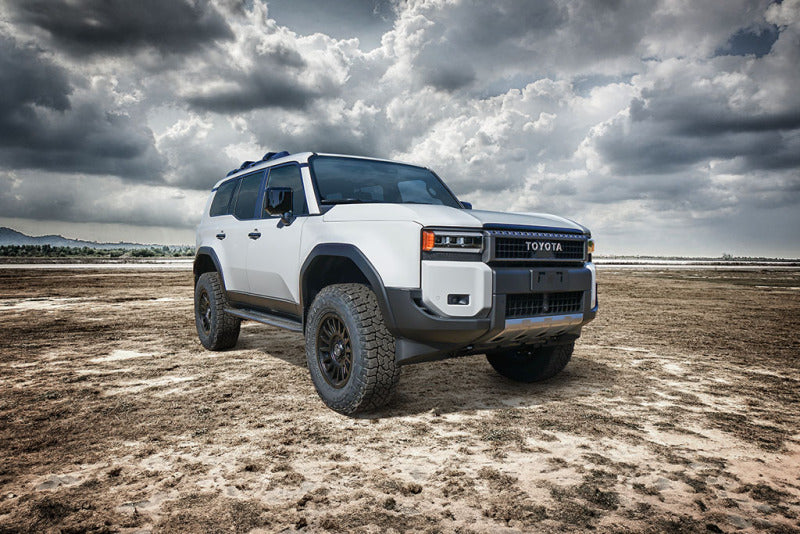

Toyota Land Cruiser 250 (2024)

Features

Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
2.5" diameter shock bodies with remote reservoirs
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable

Tech Information

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
TECH NOTE: Also requires installation of IIC kit (Part # 53509) and CDEV rear shocks (Part # 57870EP)

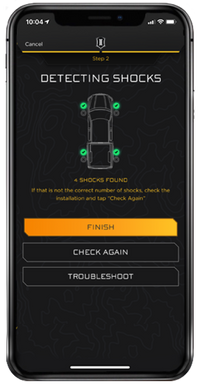

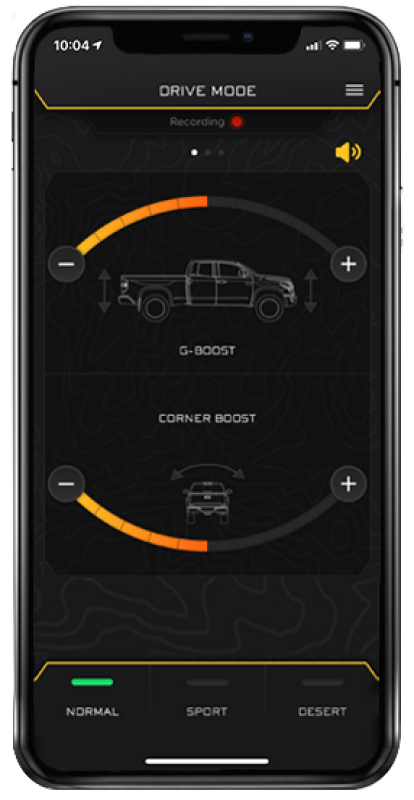

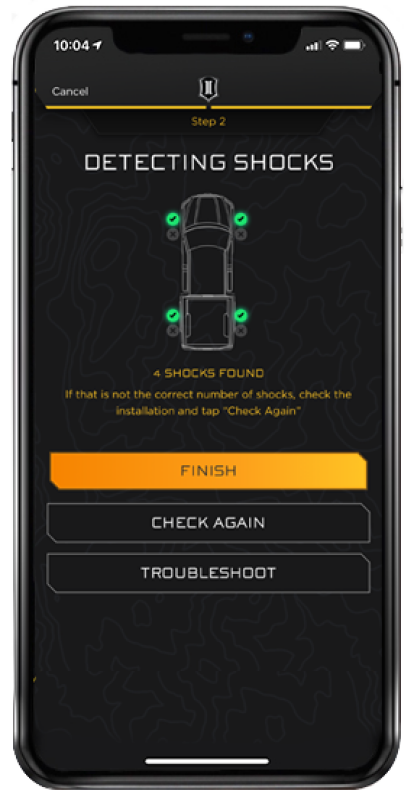

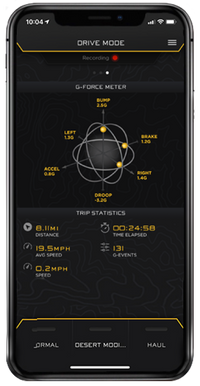

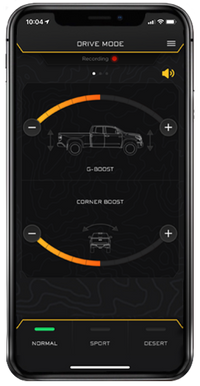

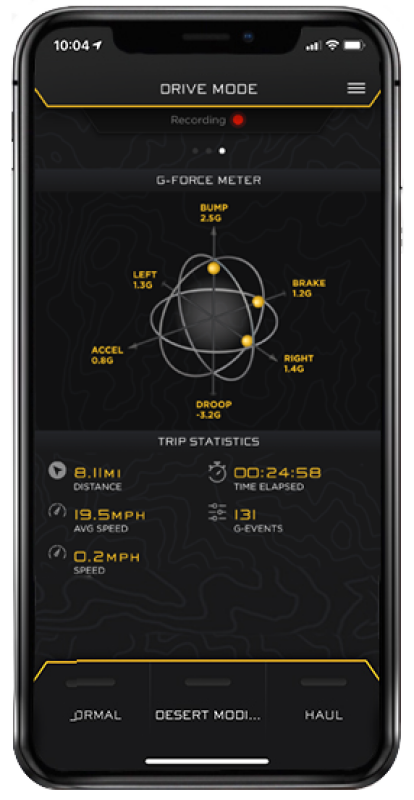

TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
