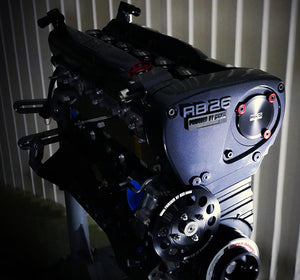

HKS COMPLETE ENGINE RB26 3.0L S3 V-CAM Nissan GTR R34 (23011-AN026)
The flagship of the RB26 Complete Engine lineup, this pinnacle model features a newly developed 2-piece piston design that delivers increased stroke and extended connecting rod length—all while retaining the original block height.
Note
- Recommended engine oil is HKS Racing Pro 10W50
- SPECIAL ORDER
Application
- Nissan GTR R34
Features
- The exclusive 3.0L crank is machined from high-end race grade nitride steel that is ion plasma treated to increase surface strength and toughness.
- In preparation for high torque, dedicated I-beam connecting rods with 36% increase buckling strength and a 22mm thicker piston pin were adopted.
- Various design changes were made to countermeasure against heat generated during higher output, such as, changes to valve guide and seat materials, adoption of sodium-filled EX valves, and pistons with cooling channels
- Dedicated 36-tooth crank angle sensor and crank angle sensor for V-cam improve signal accuracy in the high-RPM range.
| Camshaft | IN：HKS V-CAM STEP Pro 264°/ LIFT 10mm |
|---|---|
| EX：HKS STEP 2 280°/ LIFT 10mm | |
| Blow-by Separator | IN/EX HKS Enhanced Product |
| Cam Cover | HKS RB30 Exclusive (EX） |
| Cam Pulley | HKS SLIDE CAM-PULLEY (EX) |
| Timing Belt | HKS Fine Tune Timing Belt |
| Spring Retainer | HKS Titanium |
| Valve | IN: Stock EX:1mm Sodium filled-Inconel |
| Valve Spring | HKS Enhanced Product |
| Stem Seal | HKS Enhanced Product |
| Head Modifications | Combustion Chamber: CNC Machined (with retained Squish area), Seat: Beryllium / Guide: Phosphor Bronze, Port: Step removed and polished, Cam Clearance: CNC Machined, Water Jacket: Modifications for improved water flow. |
| Head Gasket | HKS Grommet Super Cooling Type (t=1.2) |
| Head Bolt | HKS Enhanced Bolt |
| Block (24U) Modifications |
Block deck Resurfacing (Parallel to the crankshaft), Waterhole Machining, Head bolt hole chamfering (to prevent cracking), Deburring lower end of cylinder、Boring |
| Oil Pump | HKS Enhanced Product |
| Piston | HKS 2-piece machined |
| Conrod | HKS I-Beam Center Distance: 127.5mm |
| Crankshaft | HKS Billet Full Counter (Ion plasma treated nitriding steel) |
| Main Bearing | ACL |
| Conrod Bearing | ACL |
| Crank Angle Sensor | 36-2 tooth direct crank |
| Ignition system | HKS SUPER FIRE RACING COIL PRO |
| Crank Damper | ATI 1000PS Specification W/P Pulley：D124(ATI) Ribbed Belt：4PK850,4PK910,4PK925 |
| Covers | Baked Finish |
